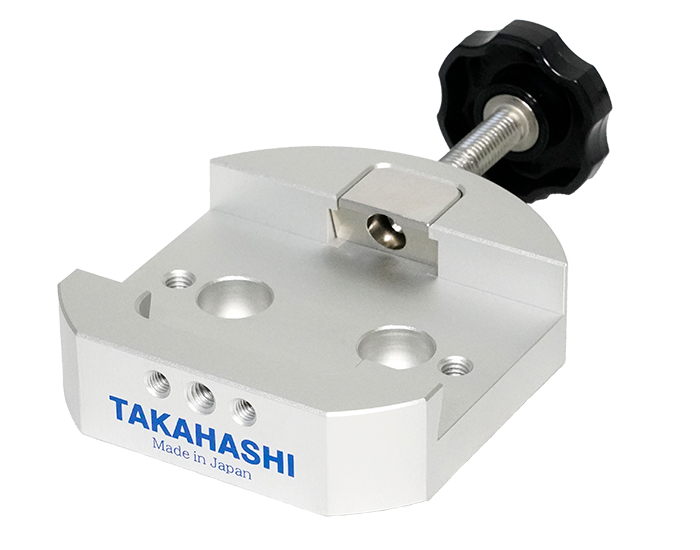

Universal Dove-tail Adapter (Female)

Secure, Versatile Mounting for Takahashi Optical Systems
The Takahashi Universal Dovetail Adapter (Female) expands compatibility across Takahashi and third-party dovetail systems. It supports both the Arigata 220B and standard 44 mm narrow-width dovetails, allowing full integration of Takahashi telescope rings, dovetails, and adapters for a seamless, all-Takahashi optical train.

The precision-machined metal-block clamping system ensures rock-solid attachment and reliable alignment. It also supports Takahashi’s proprietary dovetail standard used on the Mewlon 180C and Mewlon 210, eliminating the need to remove plates when swapping optical tubes — a major convenience for active astrophotographers.

Key Specifications

• Compatible Dovetails: Arigata 220B and 44 mm narrow-width standards

• Compatible Rings: 95WB / 80WB telescope rings

• Clamp Type: Metal-block clamping system

• Supports Takahashi proprietary dovetail (Mewlon 180C / 210)

• Provides stable, secure connection for a wide variety of optical tubes
