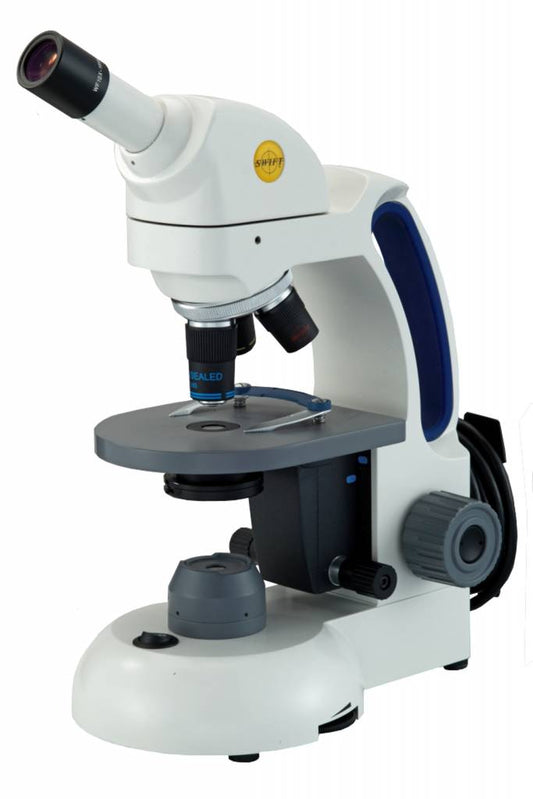

Introducing a new look to the flagship model of the Swift Optical education line. The Swift M3600 Series continues the Swift tradition for innovation, quality and student-proof features, and updates our well-known M3500 classic model series with a brand new look and design. Built-in handle, variable LED illumination and lead-free objectives are just some of the state-of-the-art features that makes this series in a class of its own. Ideal for high school students and advanced grade levels.

OPTICAL SYSTEM

Widefield 10x /18mm eyepiece.
Monocular viewing head with 45° inclined eyepiece.
DIN standard 4x (0.10 N.A.), 10x (0.25 N.A.) and 40xR (0.65 N.A.) achromat objectives. All are parfocalled, parcentered and color-coded.
Three-hole nose piece is ball-bearing mounted for smooth, precise positioning of objectives. Mounted in reverse position to facilitate ease in changing slides.

ILLUMINATION

Variable LED light provides bright, white illumination.
LED technology provides cool, energy-efficient light for up to 50,000 hours.

ELECTRICAL

110V power supply, unit shipped with American plug.

FOCUSING

Low position coarse and fine focusing controls.
Stage moves up or down, eyepiece and body remain fixed.
Slip clutch prevents damage to focusing system.
Tension adjustment eliminates stage drift.
Safety rack stop prevents damage to slides and objective lenses.

STAGE

Large 5-3/4 in. x 4-3/4 in. (143mm x 120mm) built-in, low profile stage.
Built-in 0.65 N.A. condenser has iris diaphragm (sealed).
One-touch stage clips for easy transition of slides.

FRAME

Cord hangers.
Base dimensions: 9-1/4 in. x 6 in. (235mm x 151mm)
Height: 14-1/4 in. (362mm). Net wt. 9.8 lbs (21.6 kgs).

PACKING

Head and frame in molded styrofoam container with vinyl dustcover.
Individual: Ship wt. 15 lbs (6.8 kgs), Dimensions 23x17x11 in. (58x43x28 cm.)
Master carton pack 2 each: Ship wt. 46 lbs (20.9 kgs), Dimensions 22x18x19 in. (46x46x48 cm.)
