The new Excelis HD color microscopy cameras set a new standard for excellence in high definition imaging for scientific and industrial applications. Excelis HD cameras are full featured HD camera offering super fast frame rates in video preview, with unrivaled color fidelity and on-board image capturing capability.

The Excelis HDS Camera & Monitor Systems allow users to view and capture images and video directly to the supplied SD card without the need for a computer or separate monitor! The 11.6" HD display offers beautiful, crystal-clear image quality, and vibrant, true-to-life color with exceptional viewing from all angles. It can be used as a stand-alone system, or connected to a PC via USB cable where images can be displayed simultaneously on the Excelis HDS monitor and the PC. For even more flexibility and ideal for teaching environments, the HDMI architecture allows Excelis HDS to be connected to an HDMI-enabled projector as well.

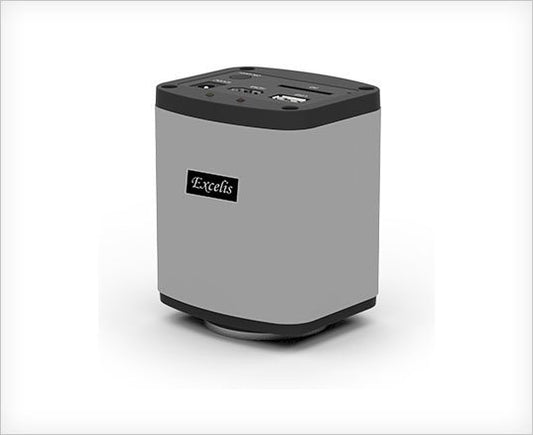

CAMERA	Excelis HD AU-600-HD	Excelis HD Lite AU-300-HD
Resolution (Live)	1920X1080	1920X1080
Sensor	1/2.8" (0.5x C-mount recommended); SONY IMX236	1/2.5" (0.5x C-mount recommended); APTINA MT9P031
Frame Rate	HDMI (60fps); USB 2.0 (30fps)	HDMI (30fps); USB 2.0 (15fps)
Image Capture	5.0 MP / High Speed SD Card (8GB)	5.0 MP / High Speed SD Card (4GB)
Video Capture	HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac	HDMI: 1080p, 15fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac
Exposure Time	0.001 sec - 10.0 sec	0.001 sec - 10.0 sec
White Balance	Auto	Auto
Settings	Gain, Gamma, Saturation, Contraction	Gain, Gamma, Saturation, Contraction
Built-in Software	Cloud 1.0 (With live image measurement)	Cloud 1.0
PC Imaging Software	*CaptaVision* Imaging Software (for PC only; Mac OS not supported) *Advanced Camera Controls:*live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function; fluorescence image settings; fluorescence multi-color channel merge; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW	*CaptaVision* Imaging Software (for PC only; Mac OS not supported) *Advanced Camera Controls:*live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW
Output Modes	Mode 1: USB 2.0 / Mode 2: HDMI	Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility	Windows XP, Vista 7, 8 and 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only)	Windows XP, Vista 7, 8 and 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only)
System Requirements	Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port	Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply	DC12V/1A	DC12V/1A
Warranty	1 year	1 year
What's In the Box	*Excelis* HD Camera, HDMI Cable, USB 2.0 Cable, 12V Power Adapter, 8GB SD Card, USB Mouse, CaptaVision PC Imaging Software	*Excelis* HD Camera, HDMI Cable, USB 2.0 Cable, 12V Power Adapter, 4GB SD Card, USB Mouse, CaptaVision PC Imaging Software
