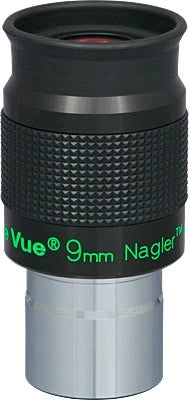

Tele Vue's 7-element, Nagler Type 6 design is based on the original patented Nagler design. This new 7-element design update for the short focal length Nagler deserves its own designation.
Using different exotic materials, coating processes and design ingenuity, Al has massaged more eye-relief, contrast, and true field of view into the shorter focal length Naglers, while maintaining the absolute sharpness of the originals. Eye-relief is 12mm on each model, and all are sized about the same as the original 7mm! Weight about 0.4 to 0.5 lbs.
Model # | EN6-09.0 |
Focal Length (mm) | 9 |
Barrel Size (in.) | 1¼" |
Apparent Field of View (deg.) | 82 |
Eye Relief (mm) | 12 |
Weight (lb / oz) | 0.42 / 6.7 |
Field Stop (mm) | 12.4 |
