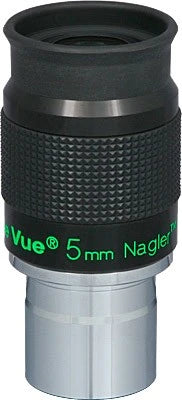

Tele Vue Nagler Type 6
The 7-element, Nagler Type 6 design is based on the original patented Nagler design. This new 7-element design update for the short focal length Nagler deserves its own designation. Using different exotic materials, coating processes and design ingenuity, Al has massaged more eye-relief, contrast, and true field of view into the shorter focal length Naglers, while maintaining the absolute sharpness of the originals. Eye-relief is 12mm on each model, and all are sized about the same as the original 7mm! Weight about 0.4 to 0.5 lbs.
Concept: The goal we set designing these new eyepieces was to increase contrast, maintain or increase eye-relief, reduce size and weight, and maintain the sharpness of the originals. They are all parfocal.
Model # | EN6-05.0 |
Focal Length (mm) | 5 |
Barrel Size (in.) | 1¼" |
Apparent Field of View (deg.) | 82 |
Eye Relief (mm) | 12 |
Weight (lb / oz) | 0.49 / 7.9 |
Field Stop (mm) | 7 |
