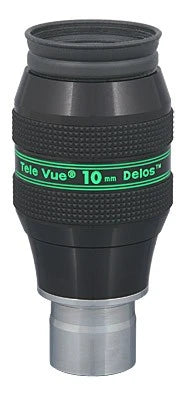

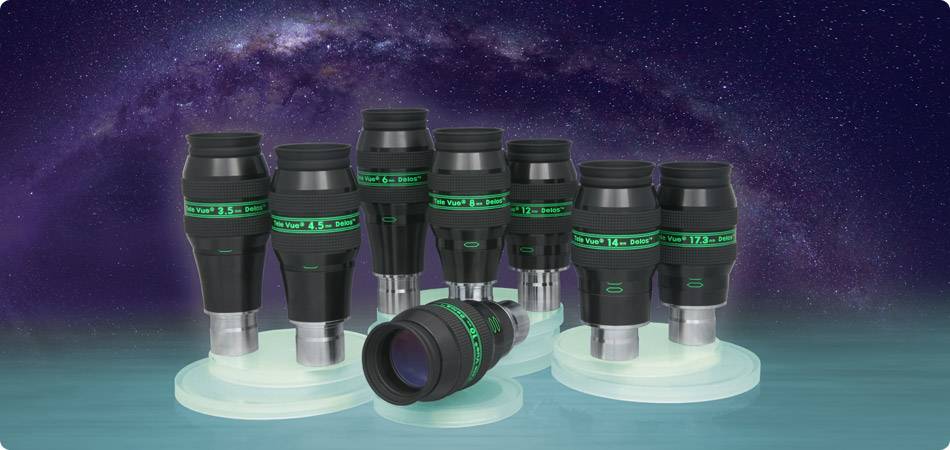

Tele Vue is pleased to introduce the Delos, mid-to-short focal length line of 20mm eye-relief, 72° apparent field of view eyepieces. Every optical, mechanical, and ergonomic aspect was rethought to achieve reference-standard performance for any visual application.
The Delos was conceived as a narrower field Ethos. Reducing the field to 72° allowed freedom to increase eye-relief, while controlling pupil aberrations, all without making the eyepiece too large. With Ethos performance standards as benchmarks, the Delos design achieves full field sharpness, virtually perfect f θ (theta) distortion mapping, and color neutrality. Image fidelity is maximized utilizing glass matched multicoatings and anti-reflection surfaces throughout the eyepiece.
Includes continuously adjustable height eyeguard with index marks.
Parfocal with all Tele Vue 1¼" eyepieces.
| Model # | EDL-10.0 |
| Focal Length (mm) | 10 |
| Barrel Size (in.) | 1¼" |
| Apparent Field of View (deg.) | 72 |
| Eye Relief (mm) | 20 |
| Weight (lb / oz) | 0.90 / 14.4 |
| Field Stop (mm) | 12.7 |
