The TOA series is a member of Takahashi’s line of triplet refractors. In the TOA design, three lens elements are used, with the front and rear constructed from ED glass. The resulting system achieves a high level of apochromatic performance for both visual observation and imaging. Takahashi engineers have a undertaken a complete redesign of the triplet system, completely eliminating spherical aberration while minimizing axial chromatic aberration in the visible light spectrum.
In typical apochromatic designs, the elimination of chromatic aberration is usually at the expense of increasing spherical aberration at various wavelengths. However, with the TOA series, the focal shift across the entire visible spectrum from 436 nm up to 656 nm is less than +/- 0.01 mm. This is less than 1/100 the aberration of a typical apochromatic design.
TOA-130NS

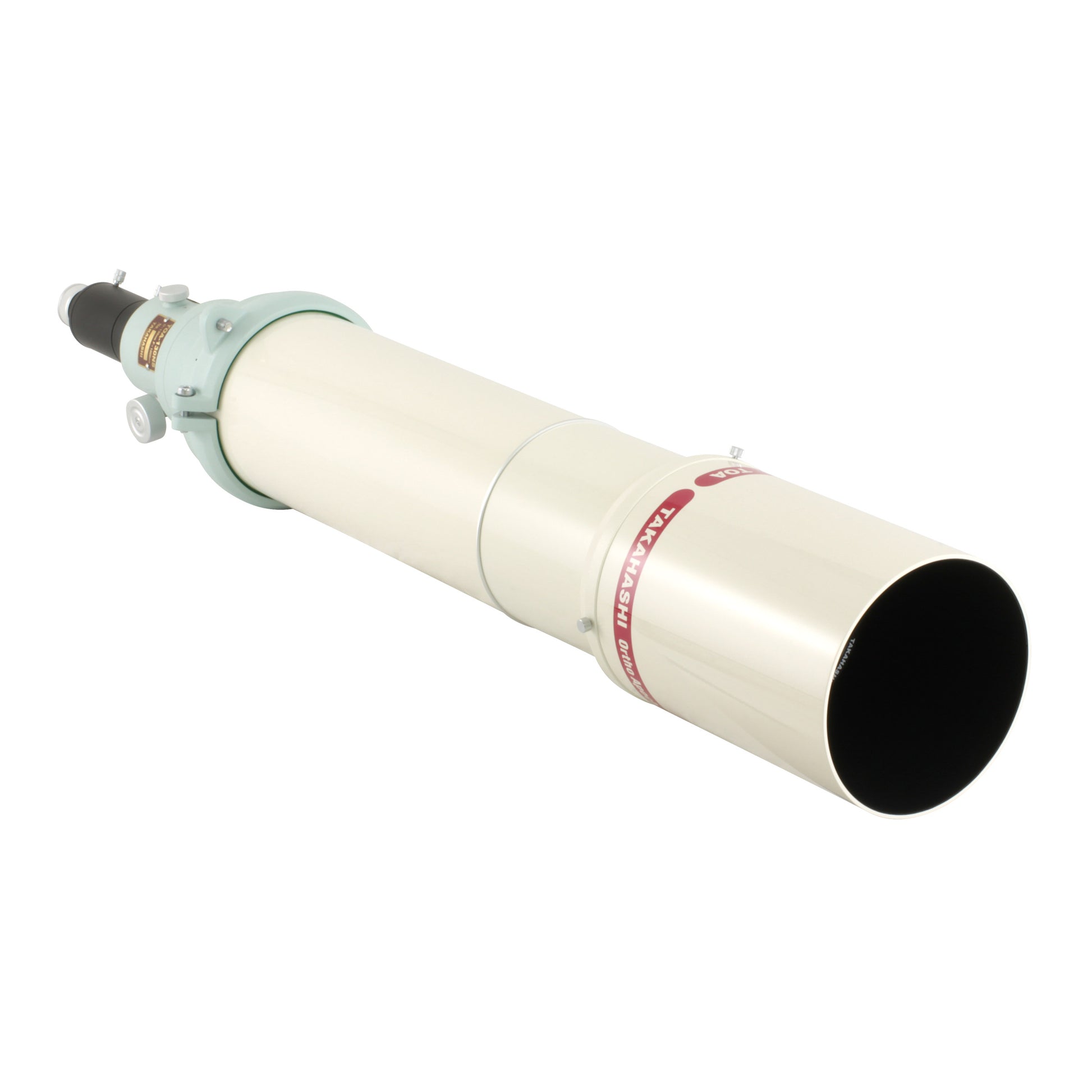

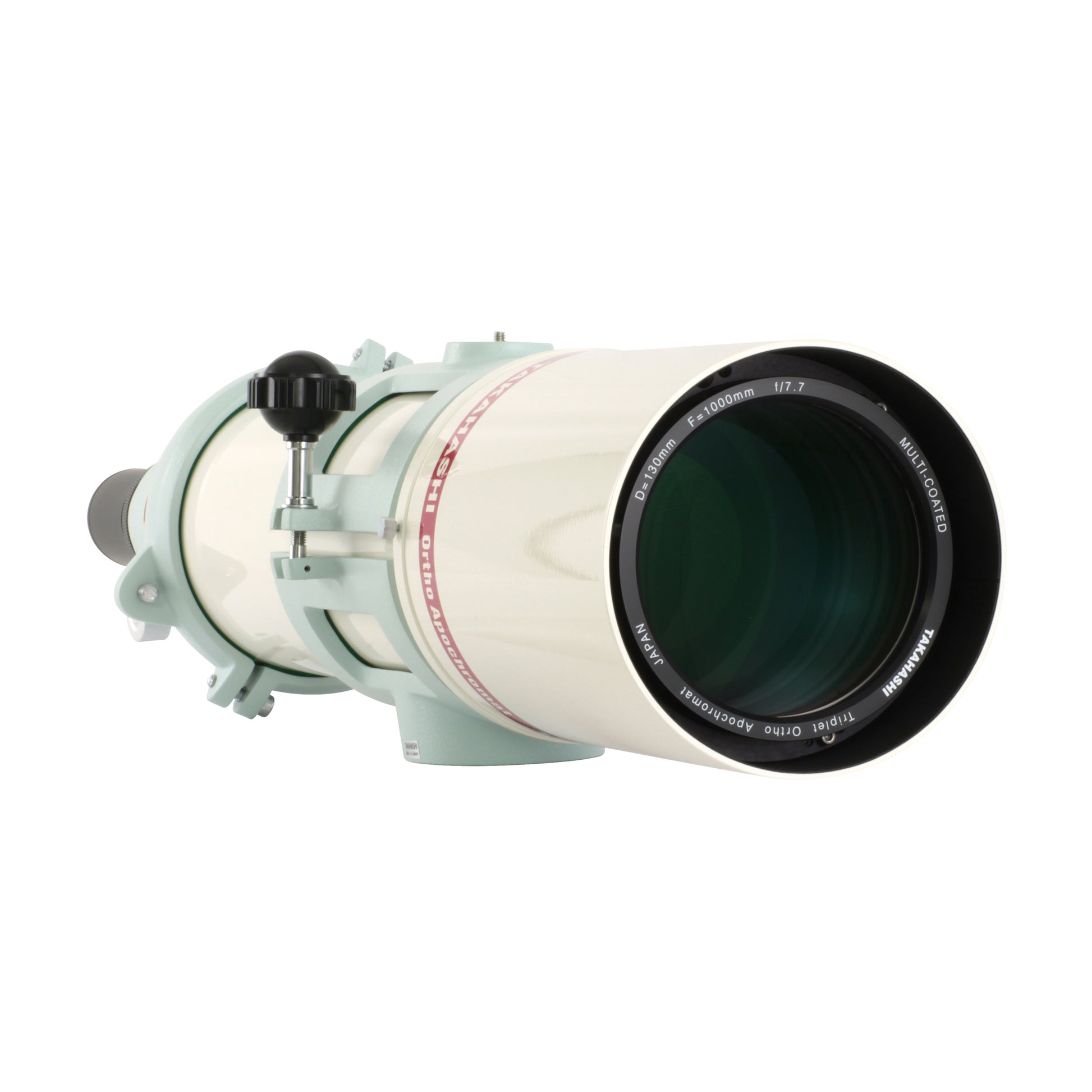

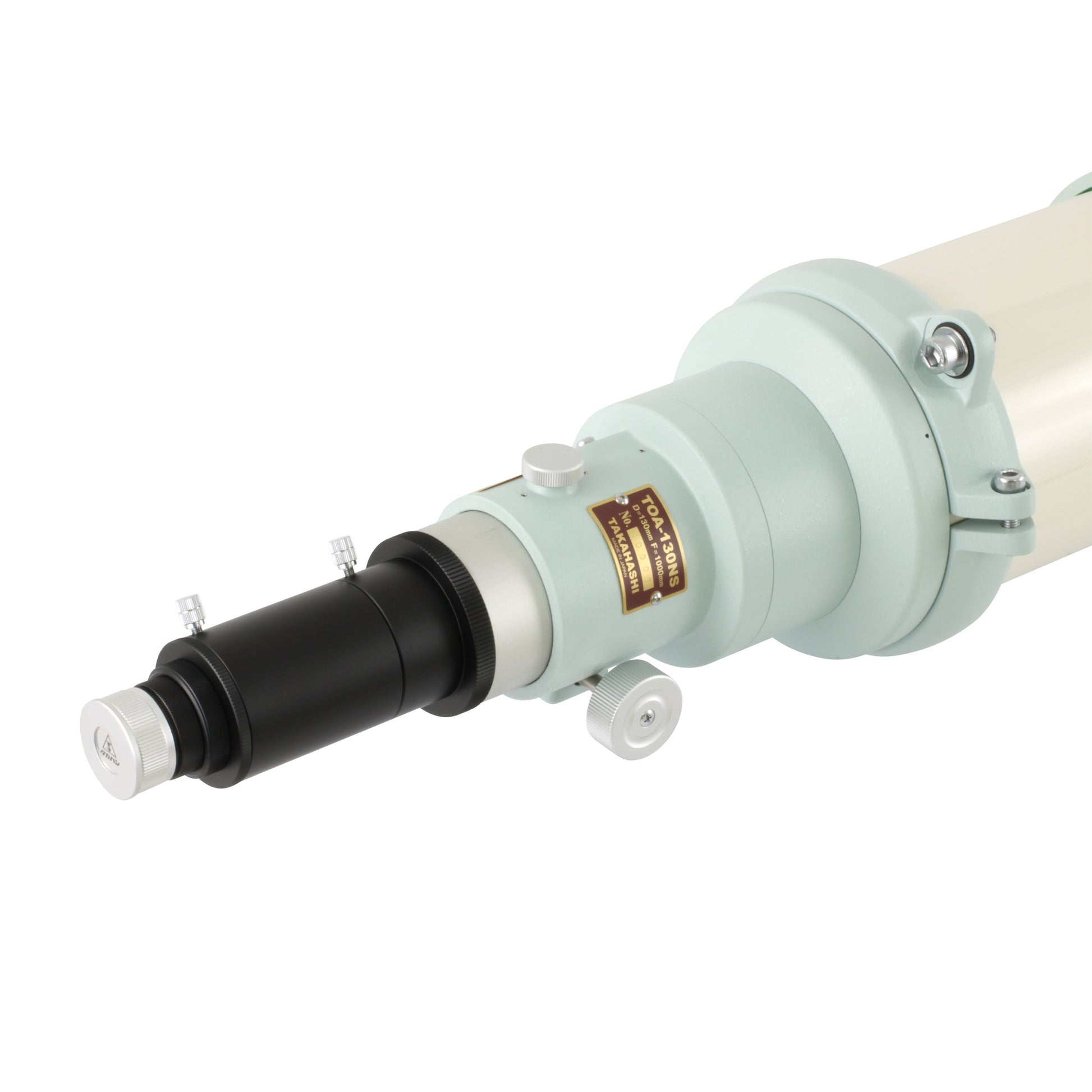

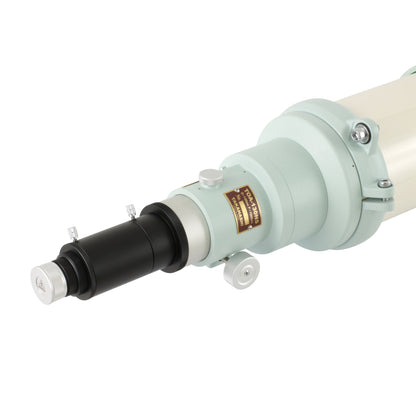

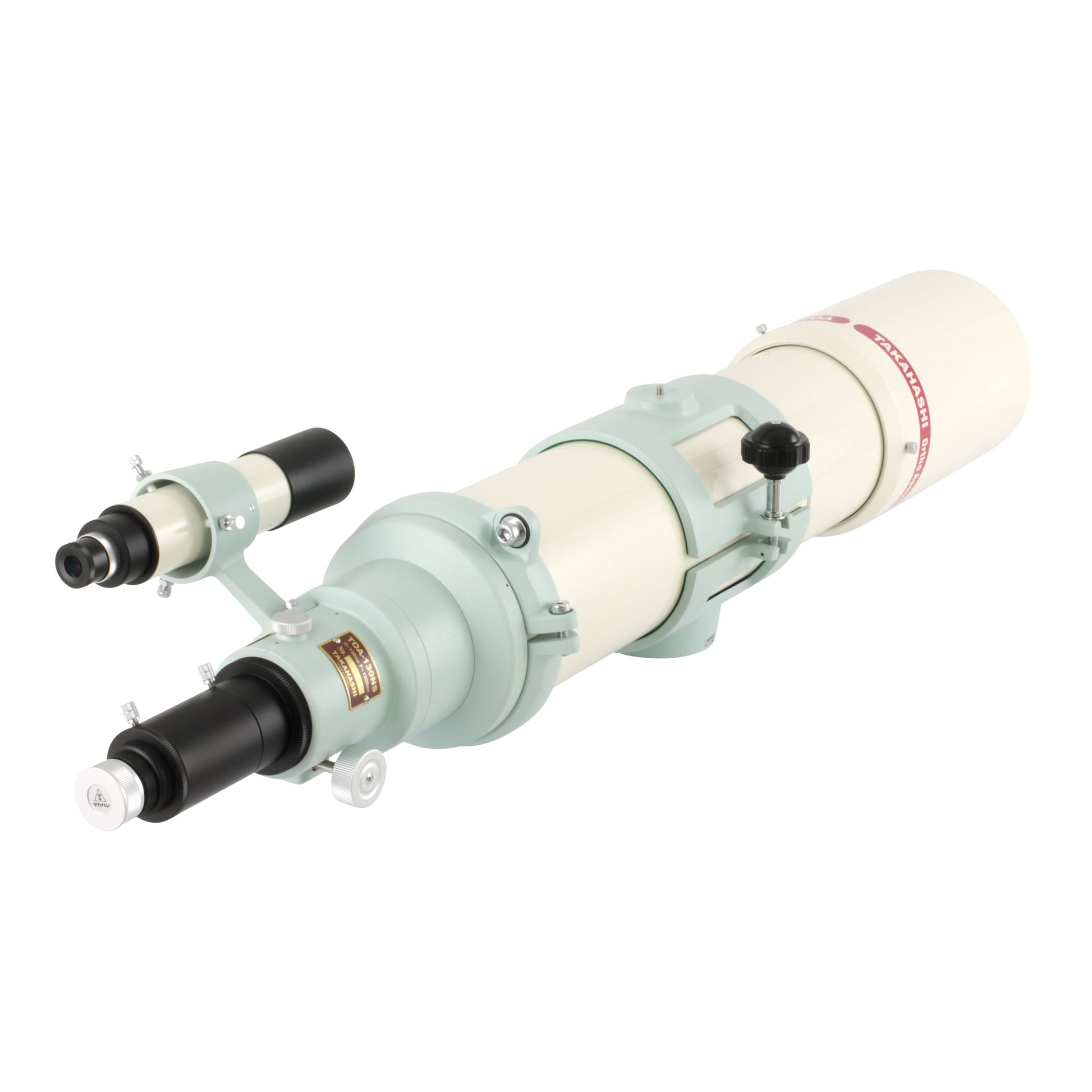

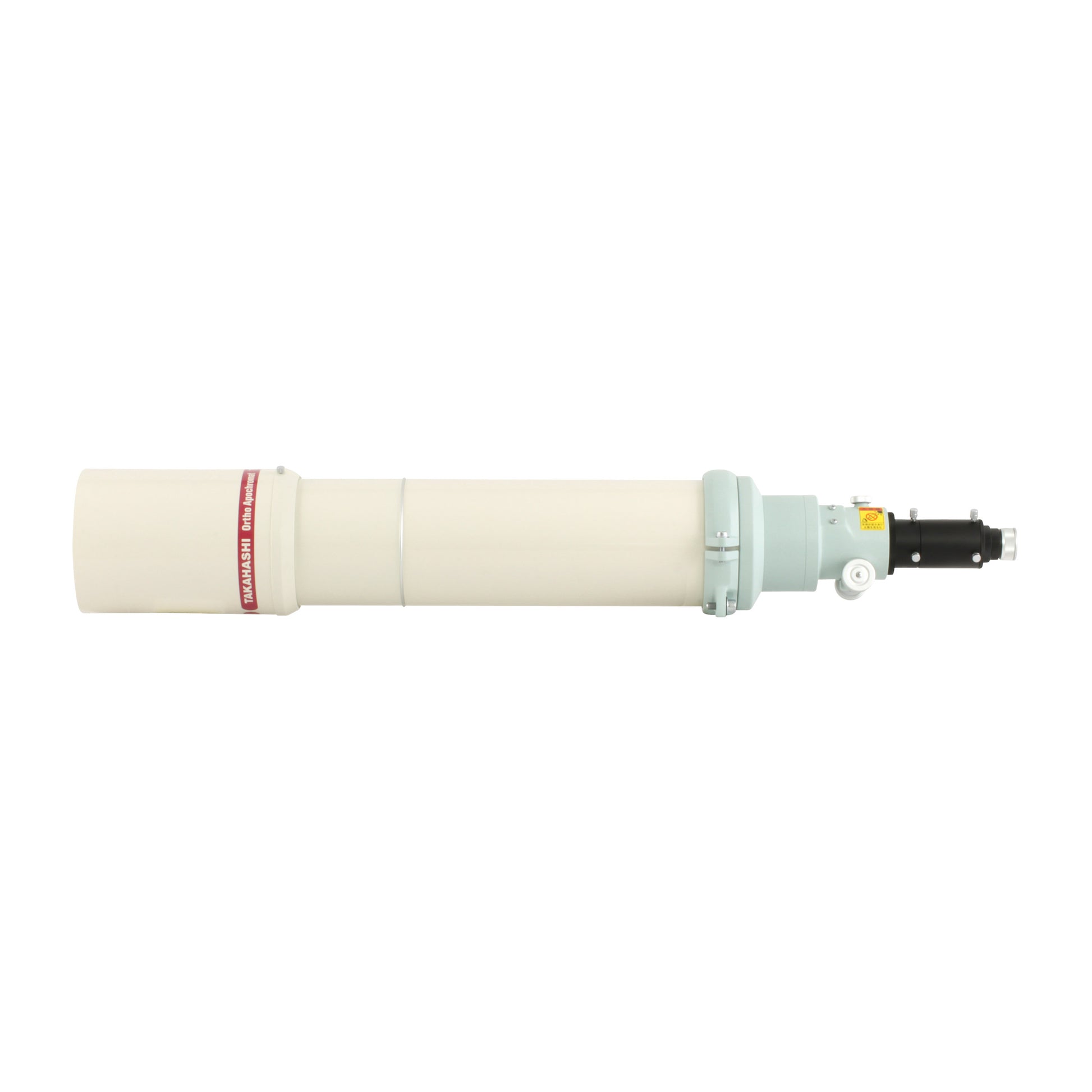

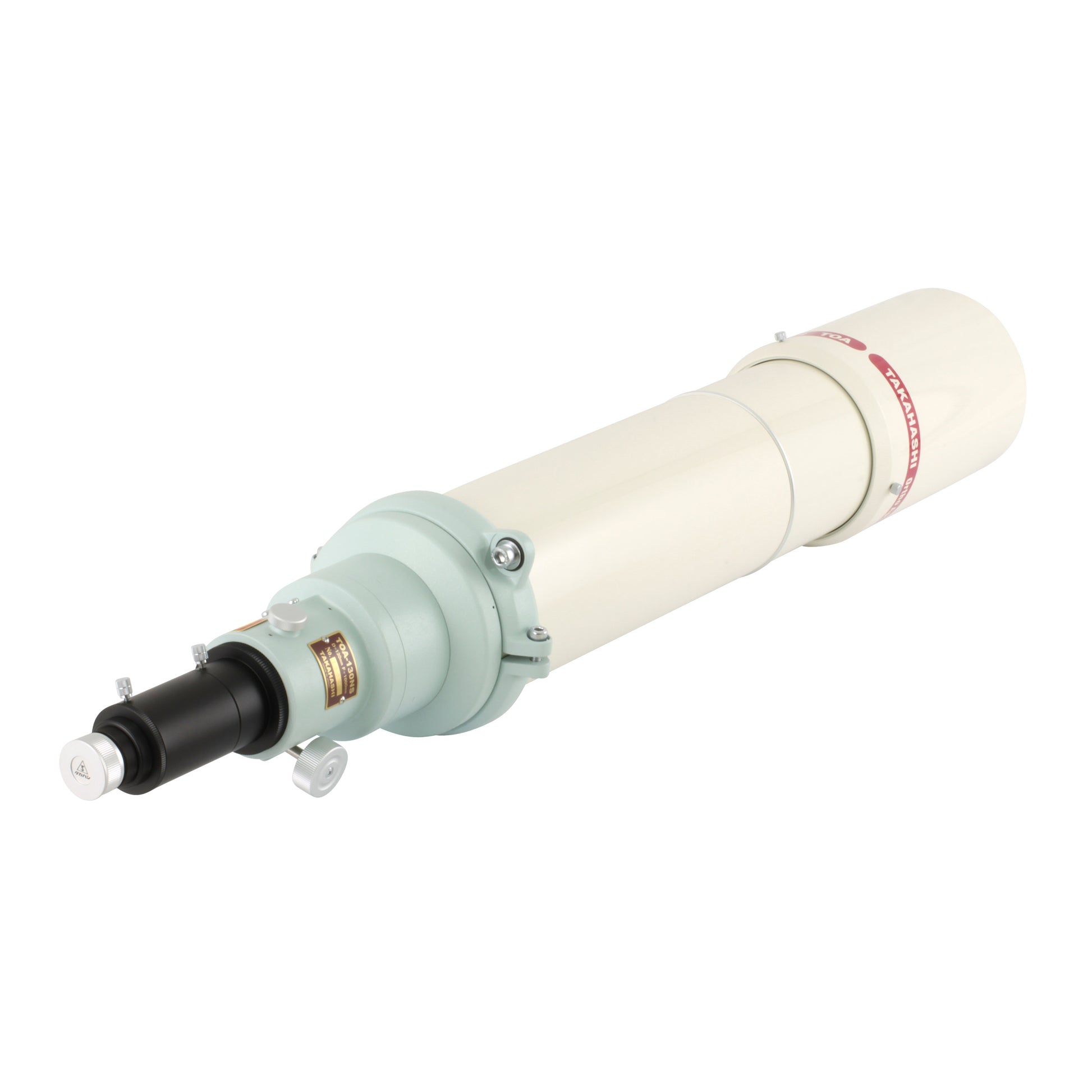

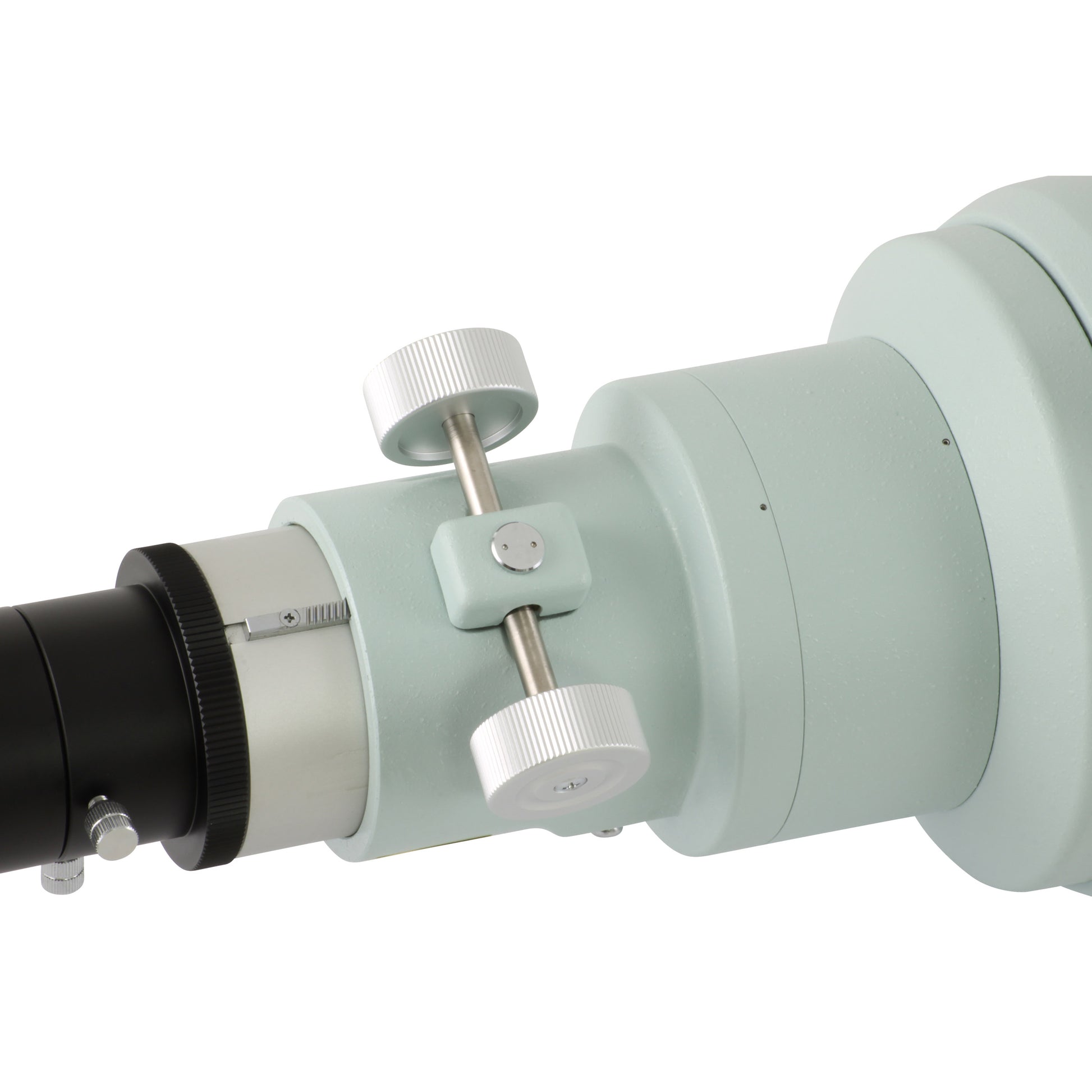

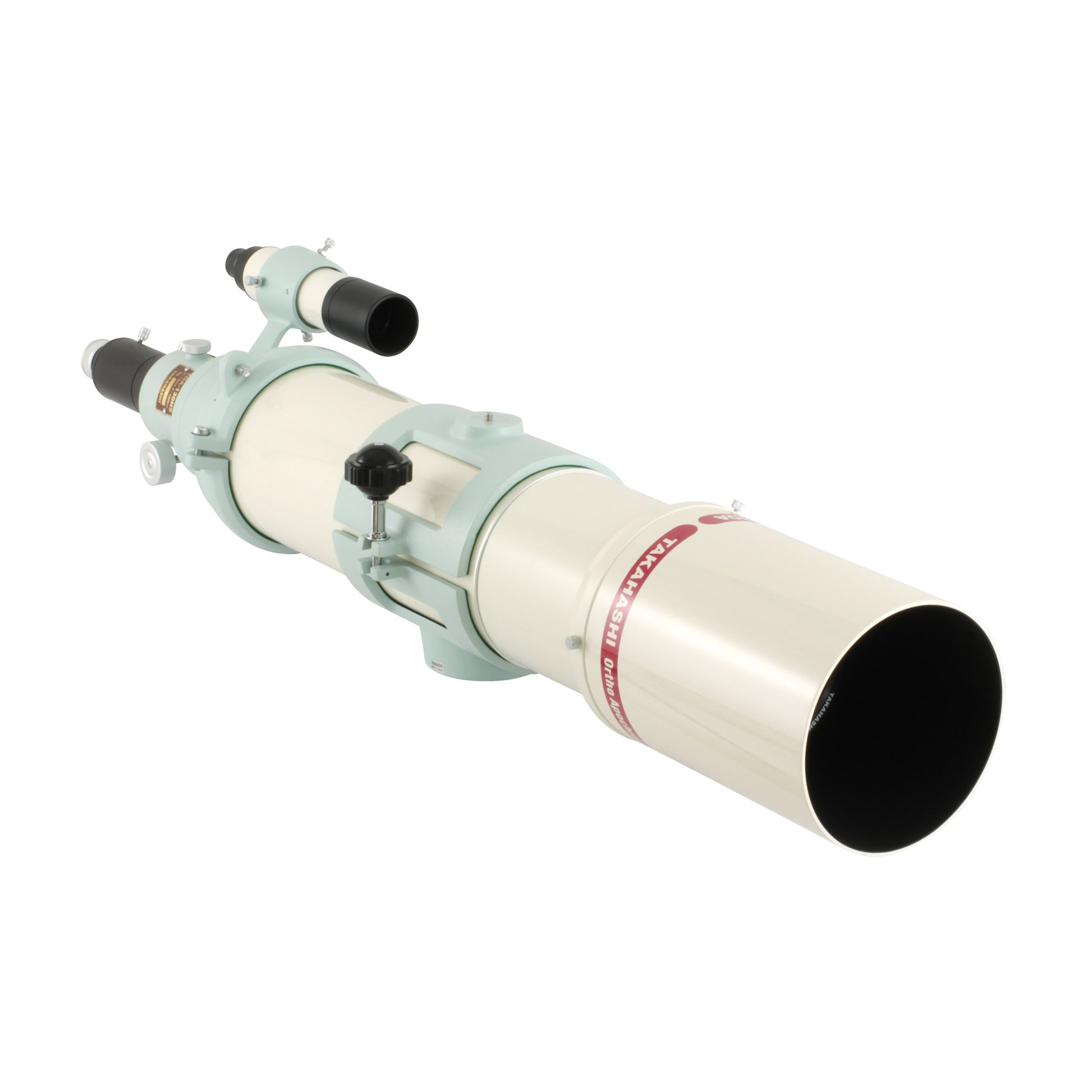

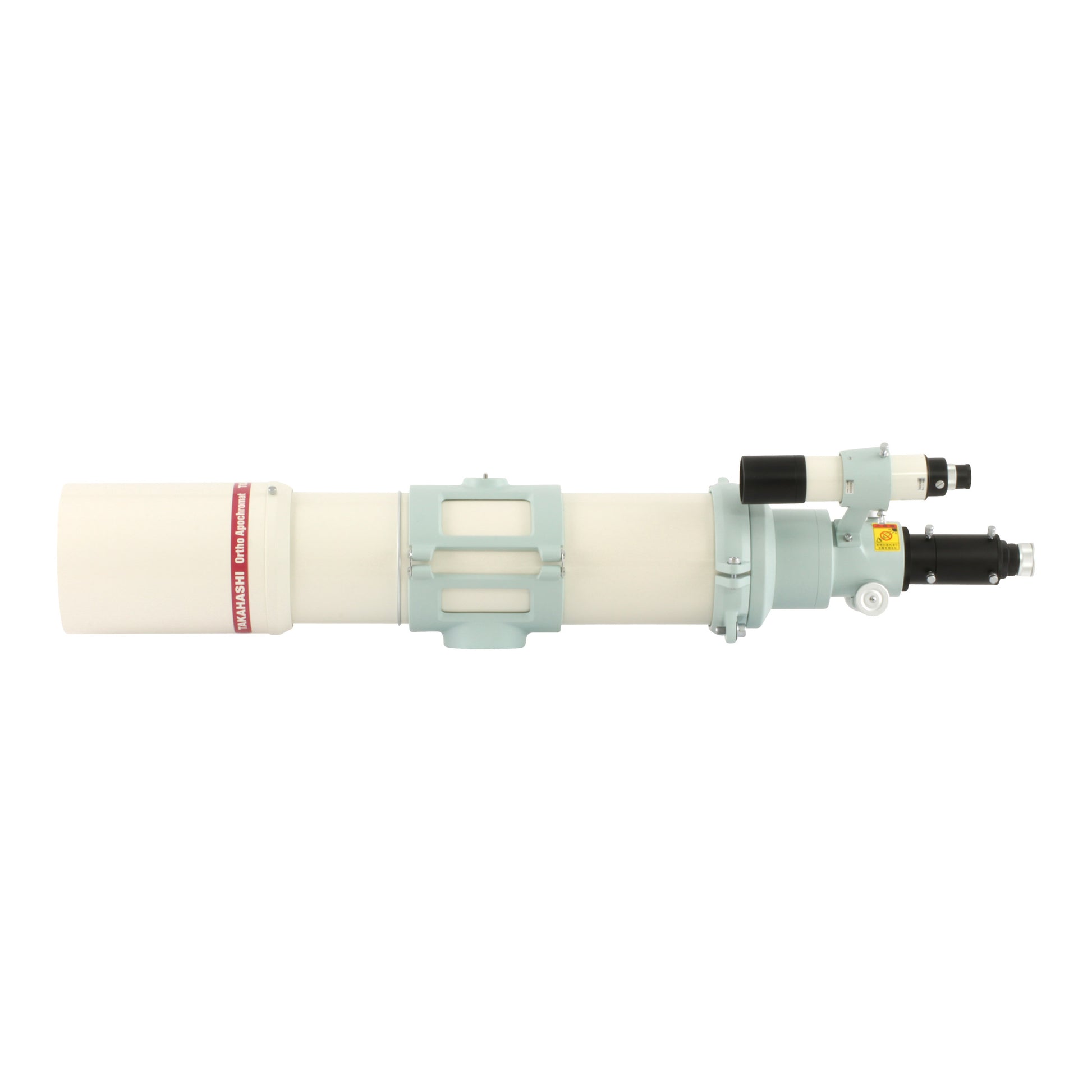

The TOA-130NS is a 130 mm apochromatic f/7.7 refractor with a focal length of 1000 mm. It features a retractable lens hood and 2.7 inch rack and pinion focuser. A complete line of flatteners, reducers and extenders are available, including the 67-series flattener, which provides a 90 mm imaging circle.
TOA-130NFB
The TOA-130NFB is a 130 mm apochromatic f/7.7 refractor with a focal length of 1000 mm. It features a retractable lens hood, a 4 inch rack and pinion focuser with a 7:1 fine focuser, and a 360-degree camera angle adjuster. A complete line of flatteners, reducers and extenders are available, including the 67-series flattener, which provides a 90 mm imaging circle.

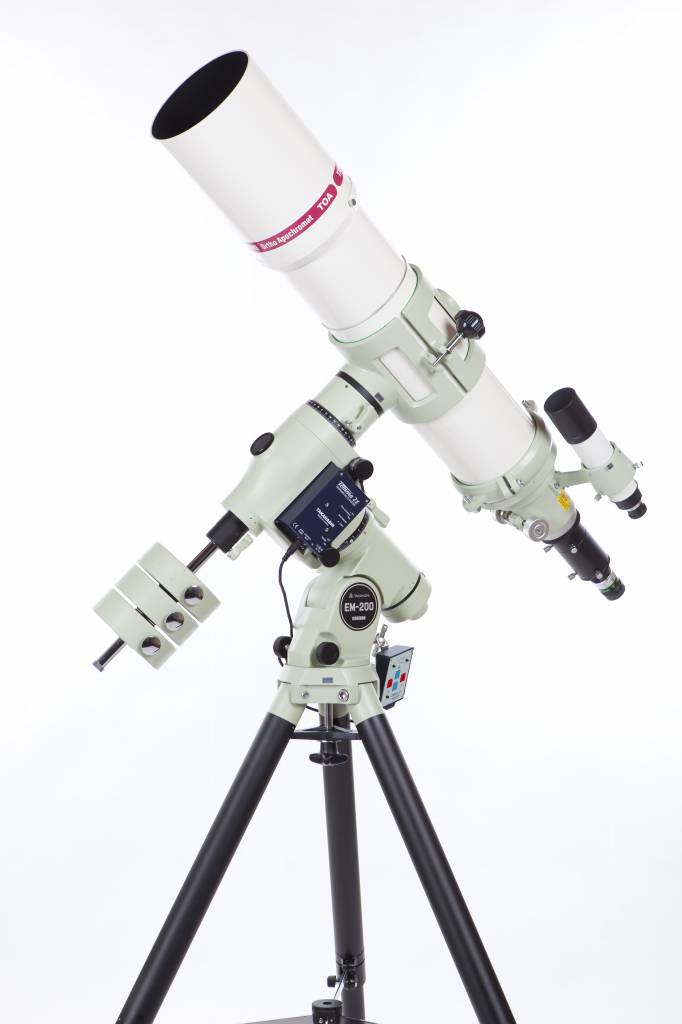

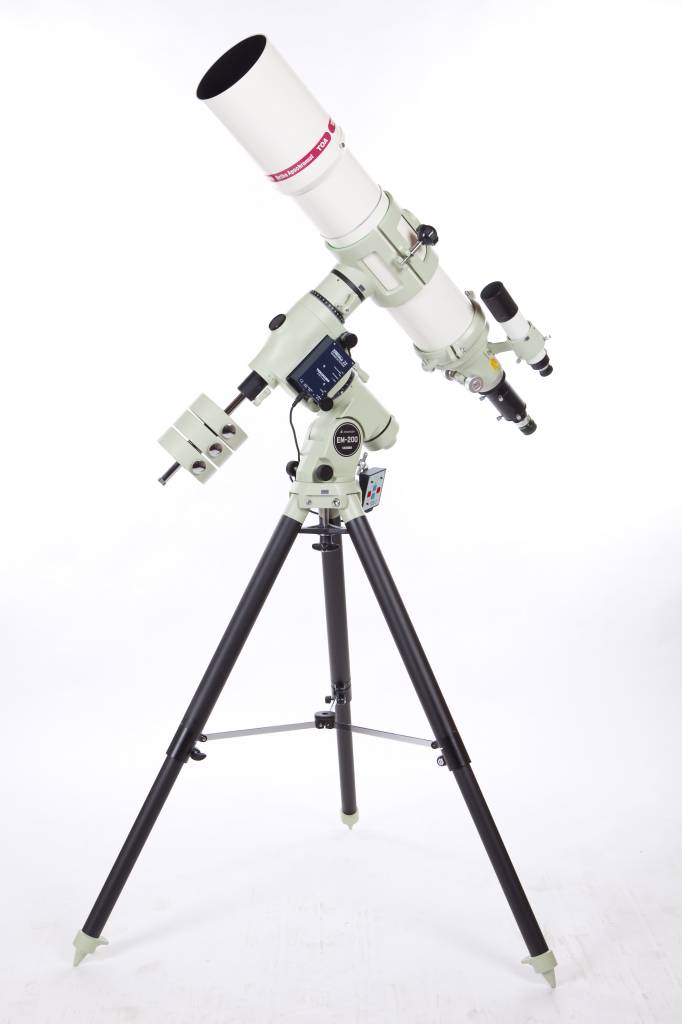

Please note: mount, tripod, tube holder and finder sold separately.
Included in the box:
Optical Tube Assembly
Extension tube (F) TKP31005
50.8 Sleeve TKP00113
Coupling (S) TKP00103
Ocular adapter (31.7mm) TKP00101
Ocular adapter (50.8) TKP27110
Extension tube (L) TKP31112
TOA-130NS Reducer System Chart
TOA-130NS 35 Flattener System Chart
