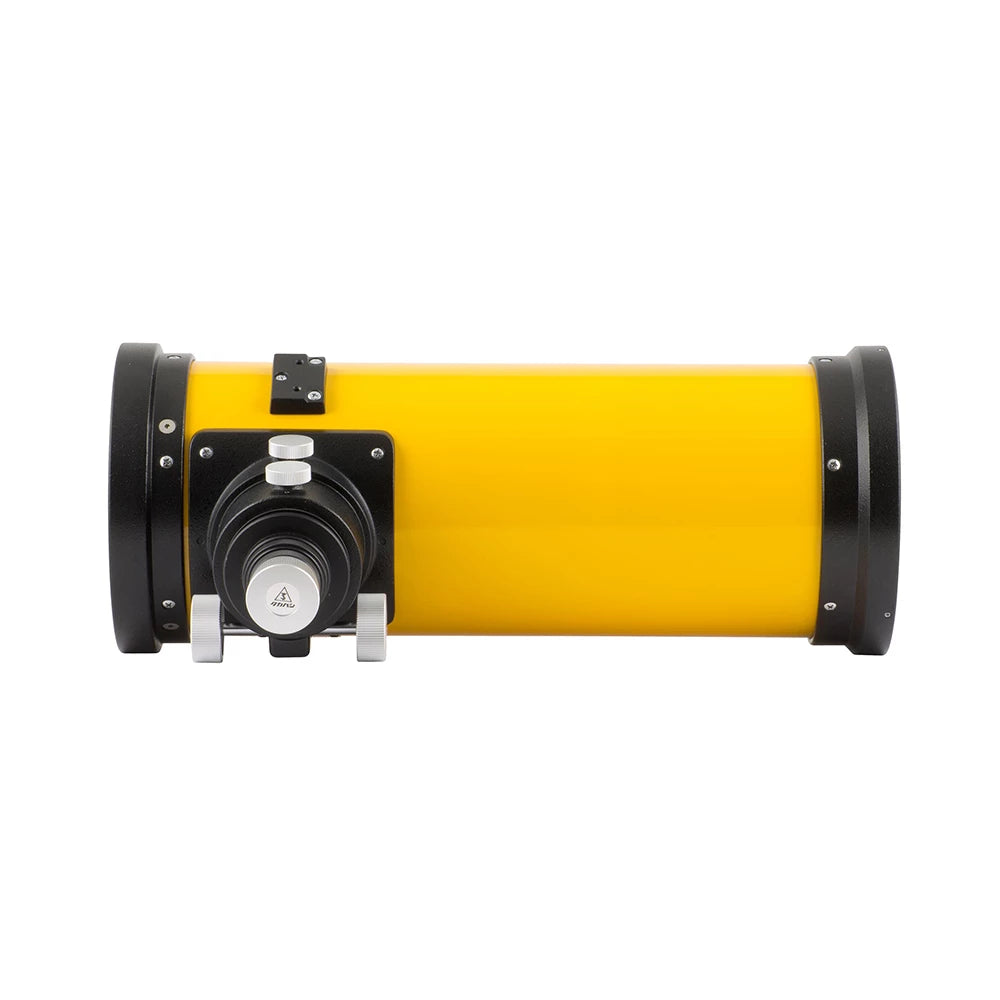

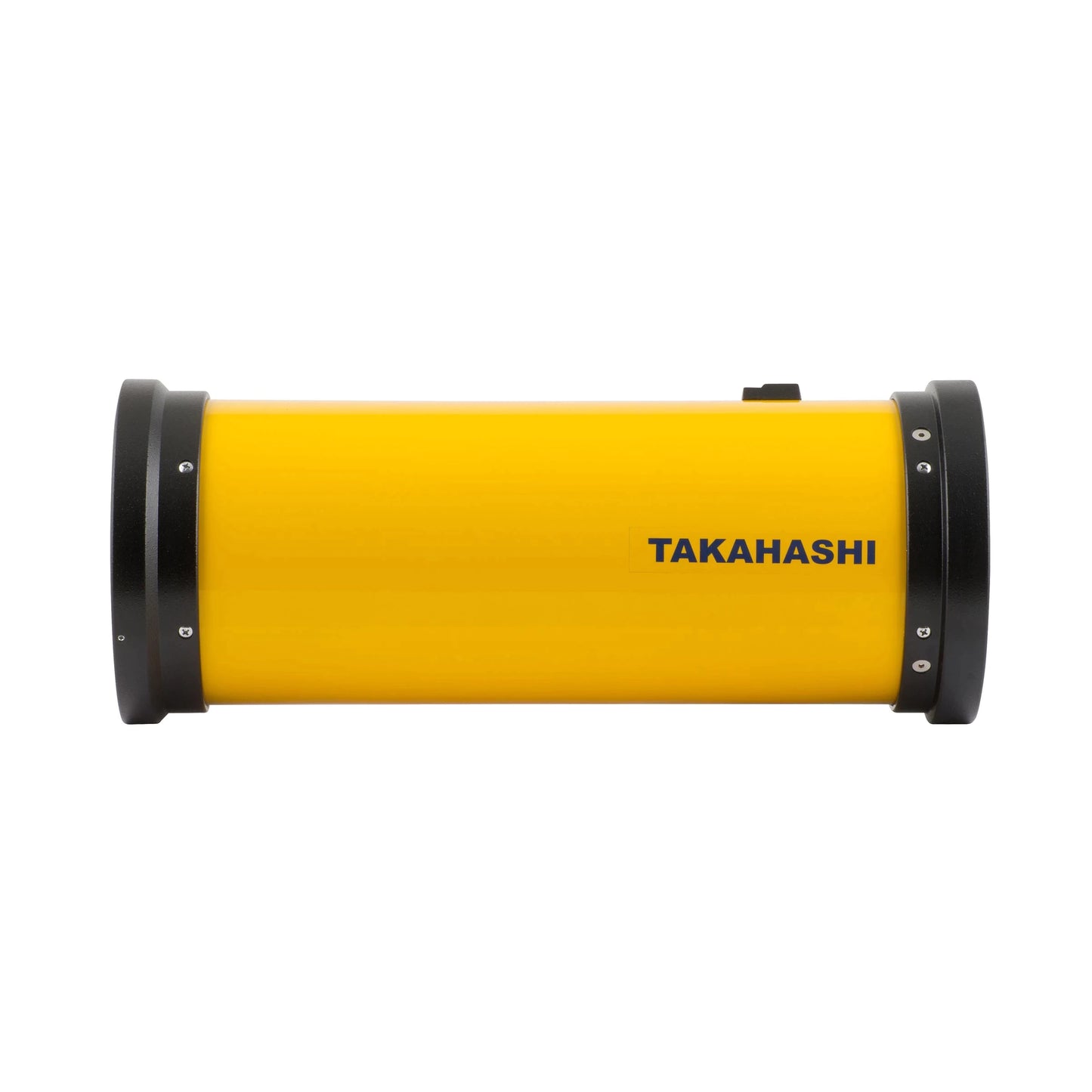

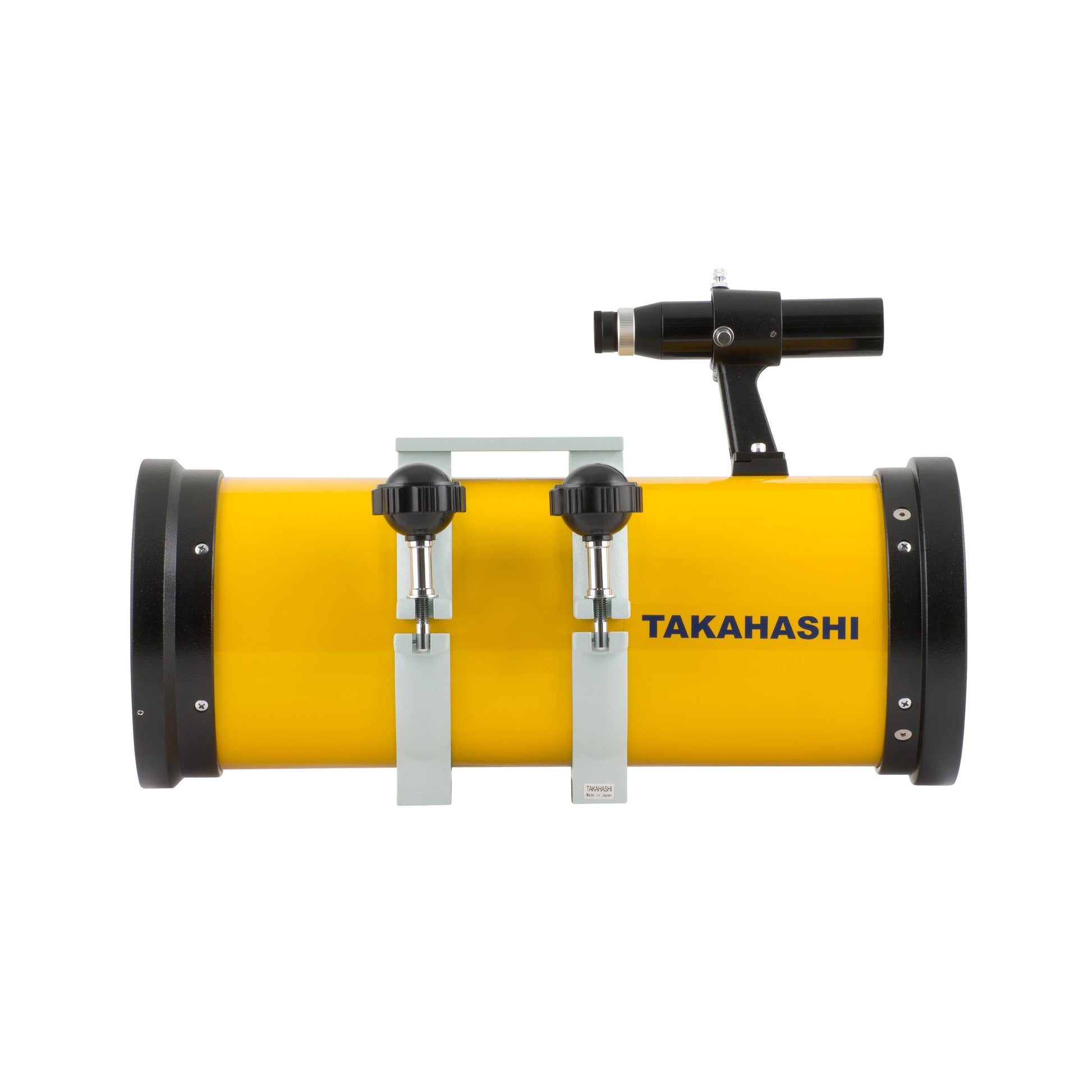

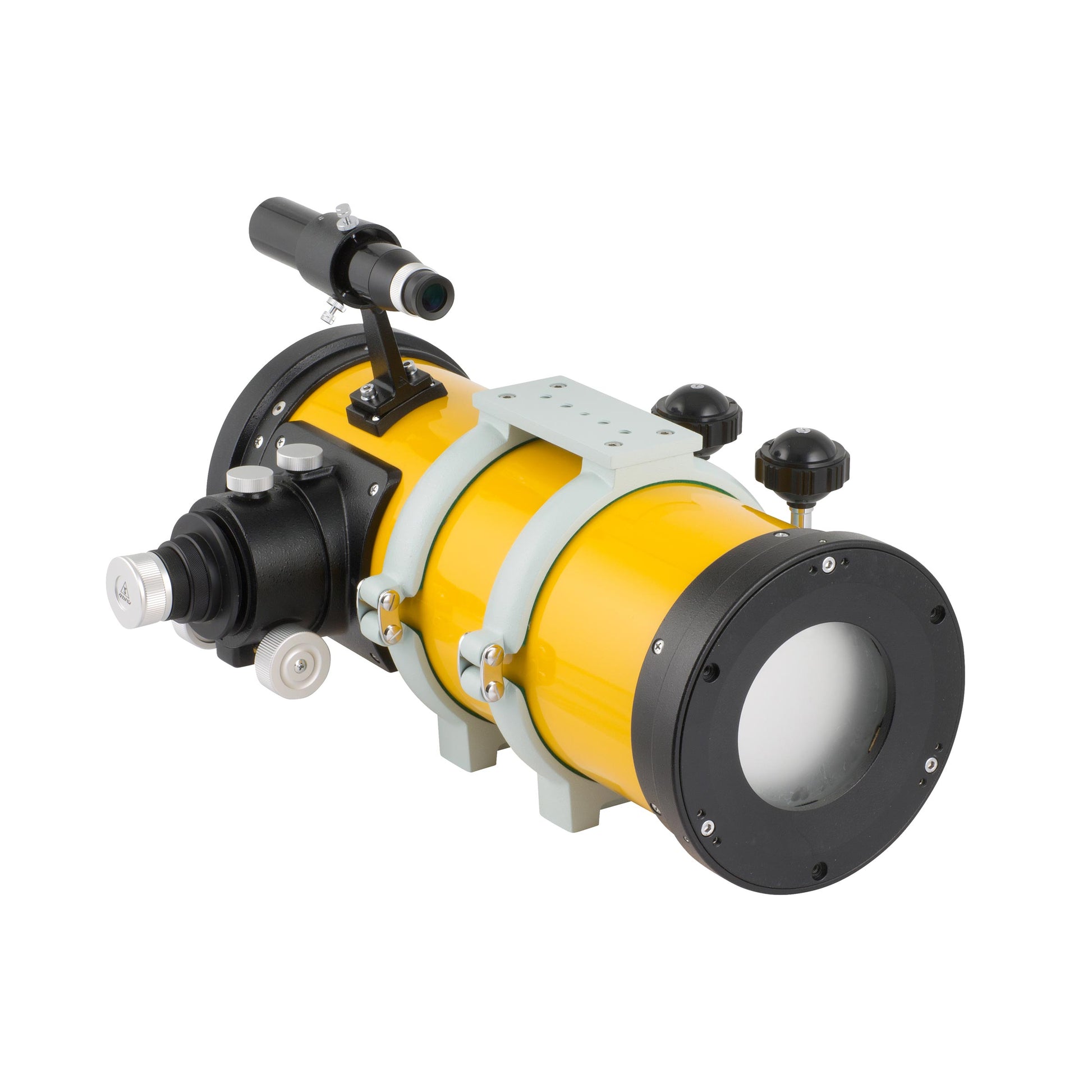

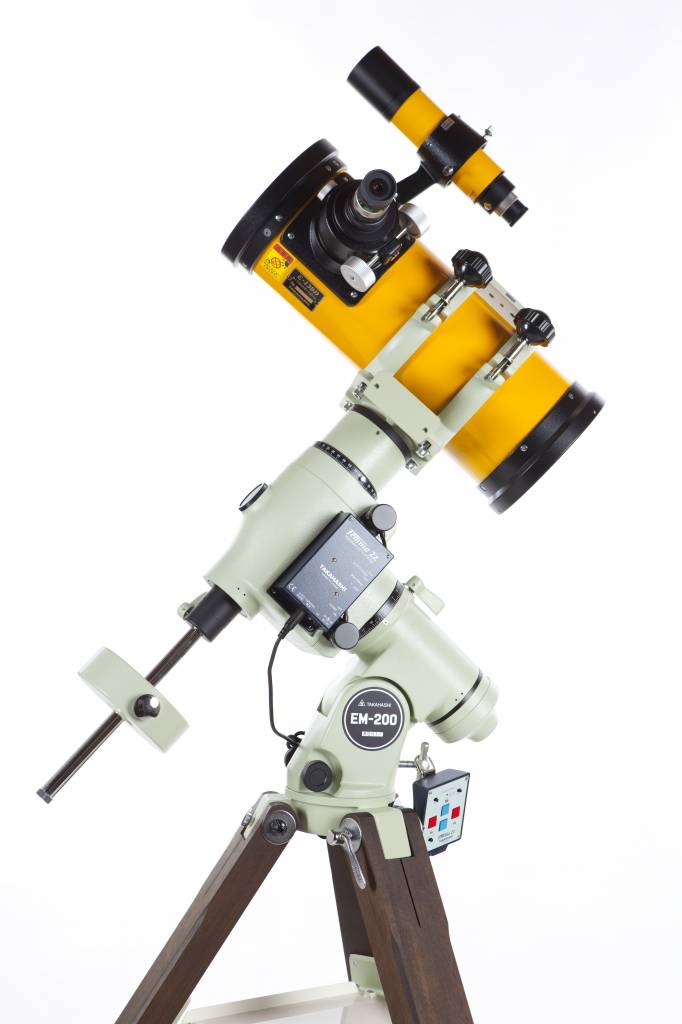

TAKAHASHI EPSILON E-130 ASTROGRAPH

TAKAHASHI SKU: TEK13010

$2,990.00

Shipping calculated at checkout

Backordered: Call for Delivery Estimate

DESCRIPTION



The catadioptric telescopes of the Epsilon series are wide-field astrographs with an hyperbolic primary mirror. A corrector is integrated in the rack-and-pinion focuser and allows to obtain a flat field with stars less than 10μm at the edge of the 44mm image circle.

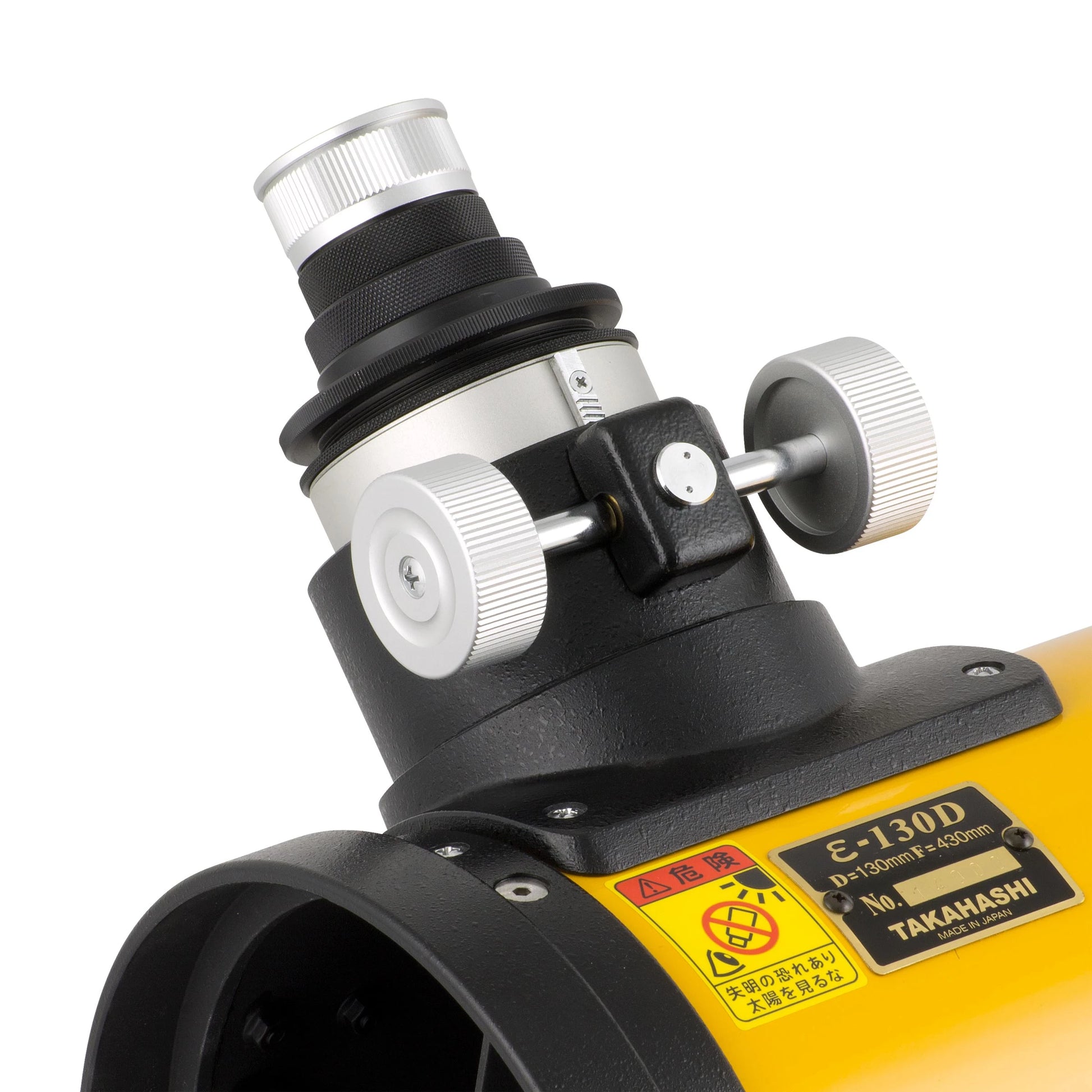

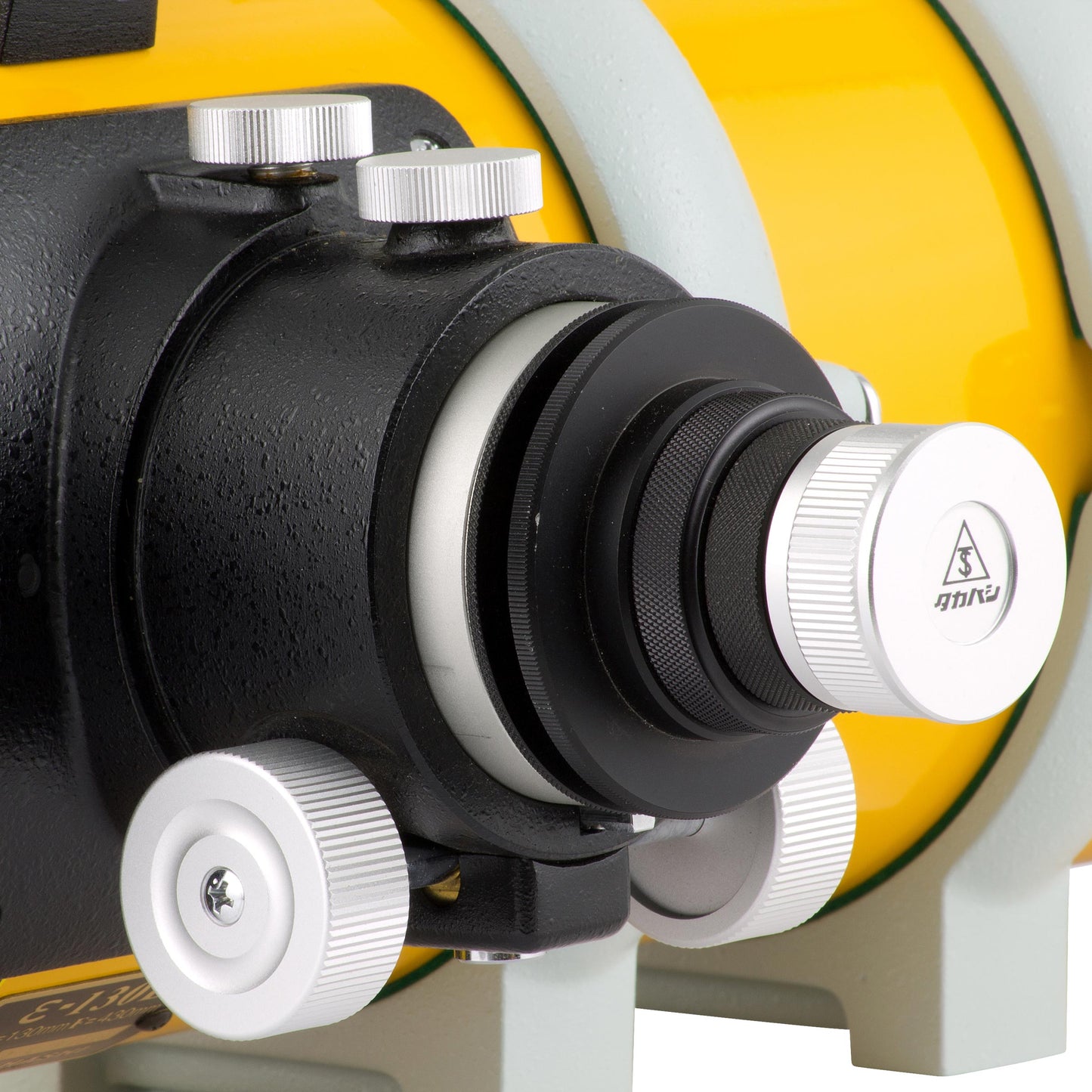

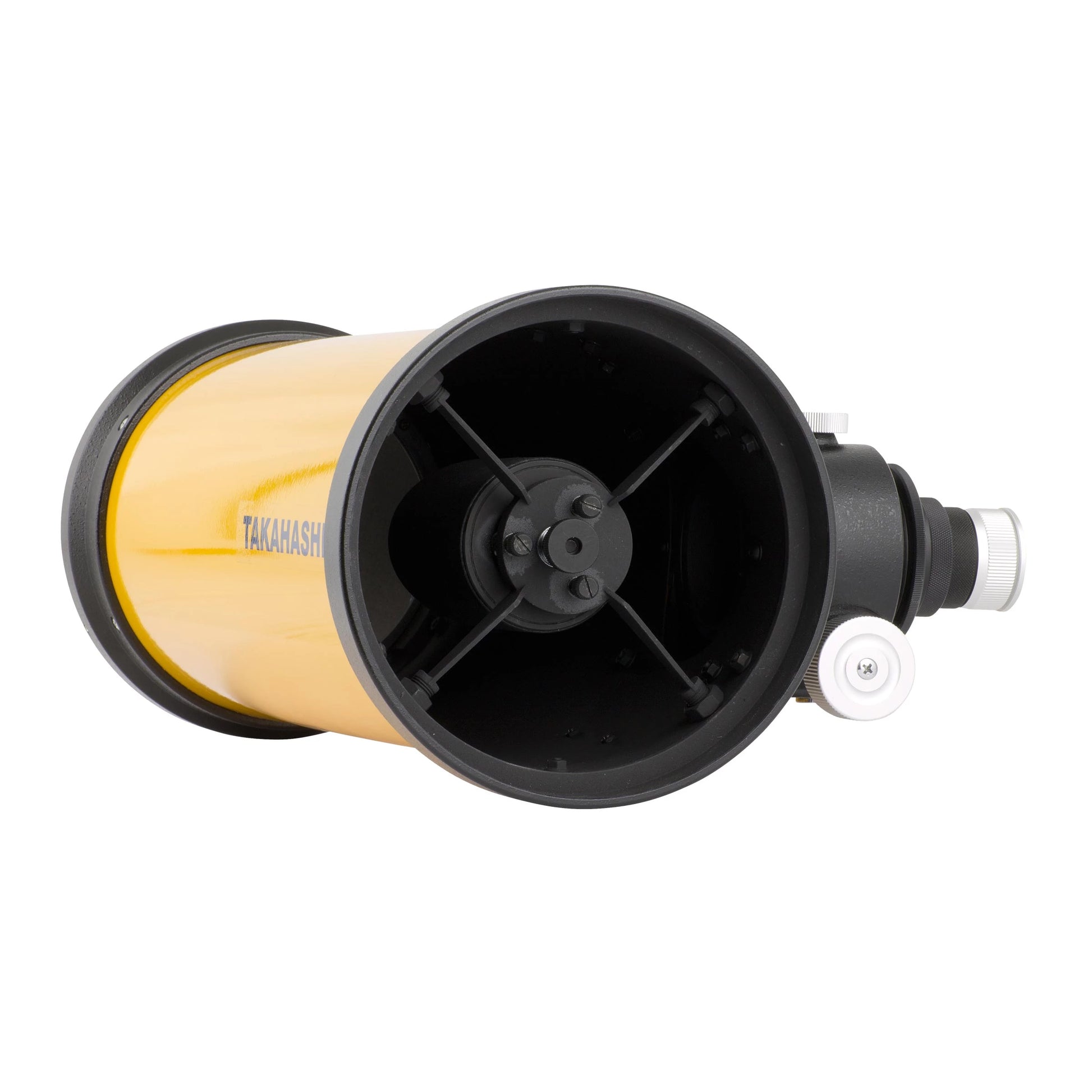

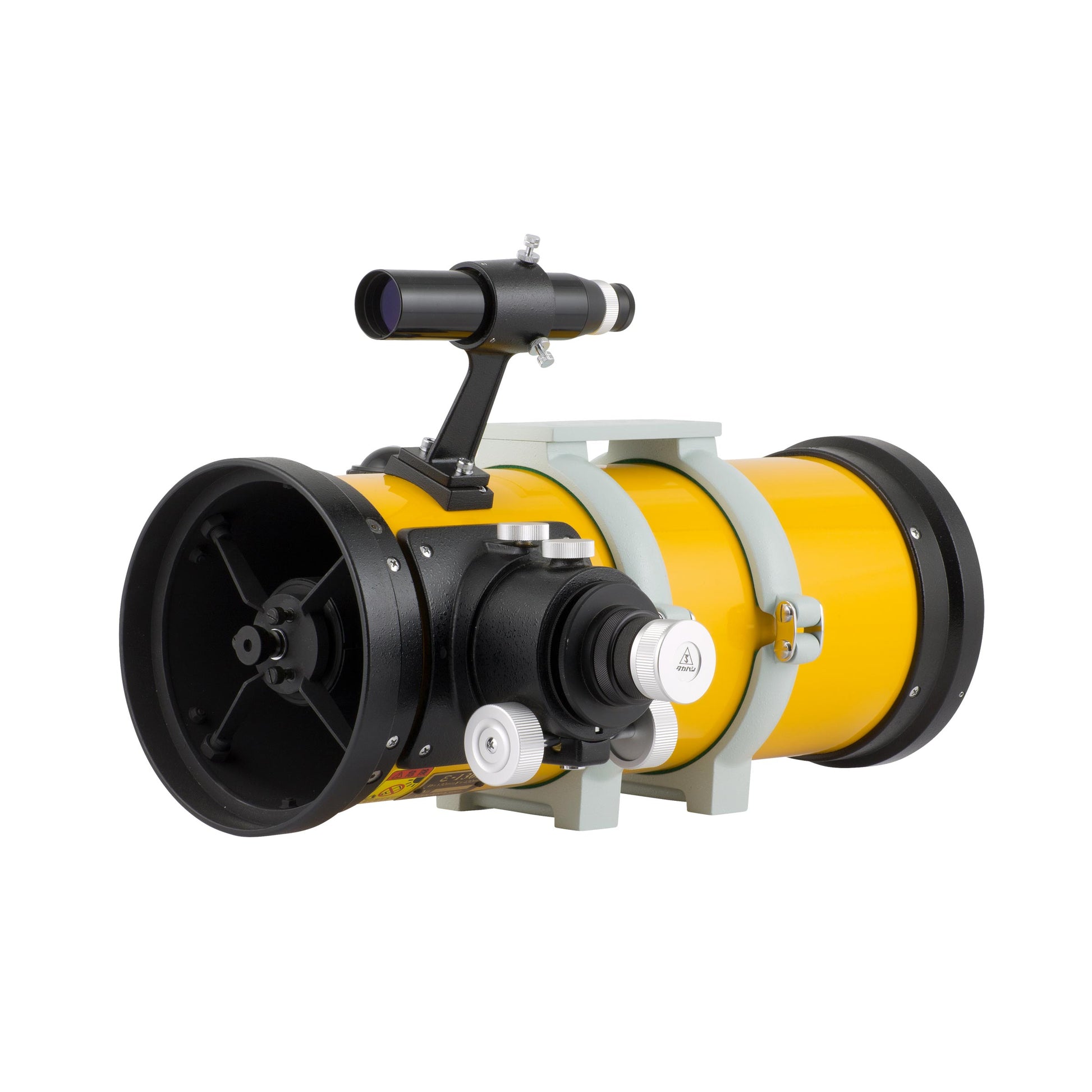

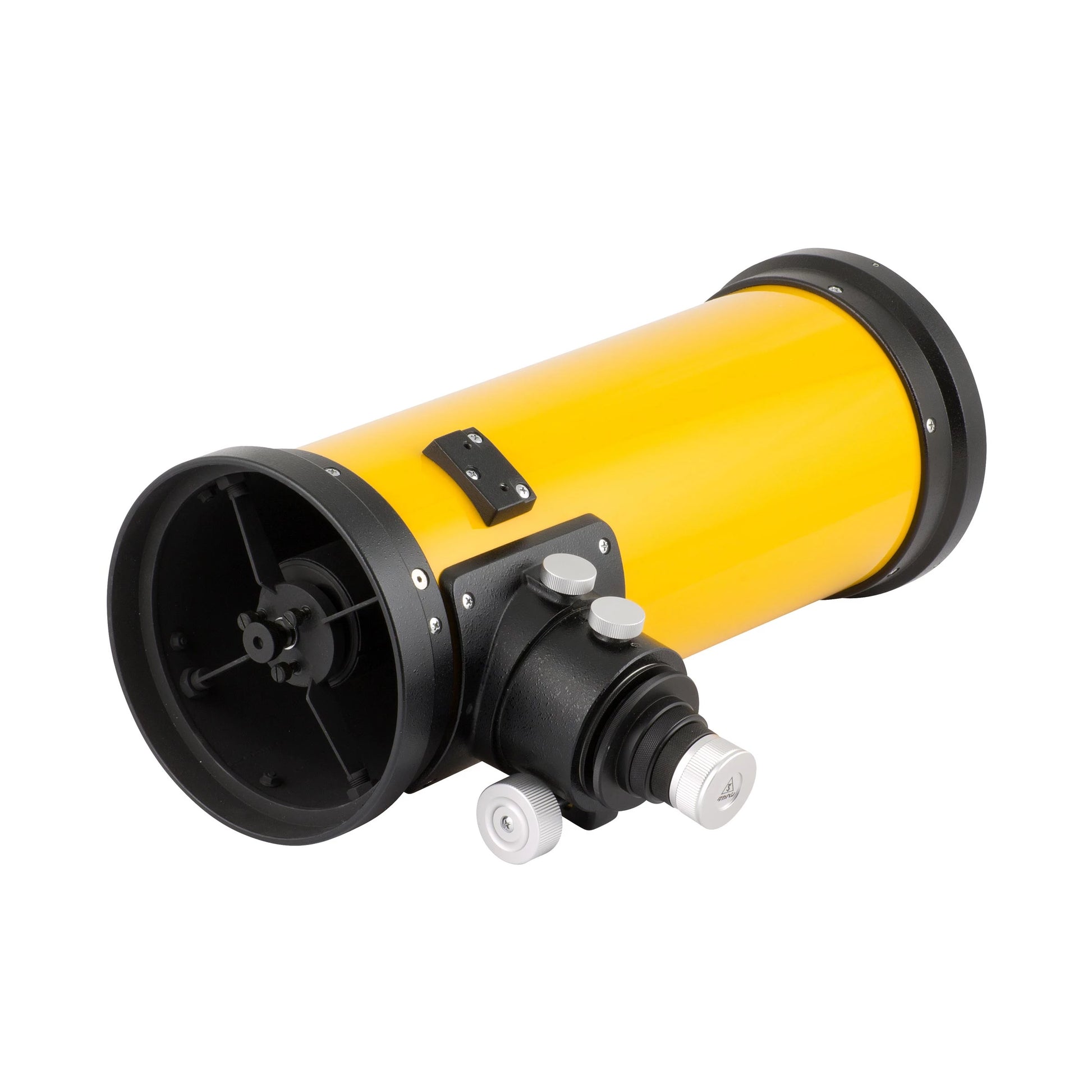

The Epsilon-130D has a focal ratio of F/3.3. Its very short focal length of 430mm offers a field of view of 5.9° and is therefore ideal for imaging large areas of stars and nebulae. Its secondary mirror is mounted on a reinforced spider to avoid any flexion. The rack-and-pinion focuser is equipped with a CAA (Camera Angle Adjuster) for photographic framing.

The collimation of the Epsilon 130D is particularly easy because it does not need to be done on a star. The optical axis is represented by markings on the 2 mirrors. Takahashi has designed a simple collimation eyepiece system particularly adapted to the Epsilon allowing the adjustment of the mirrors in daylight, a big advantage compared to a classical telescope.

Regardless of its photographic qualities, the Epsilon is a first-rate wide-field observation telescope. The observation of star clusters and galaxies will give you intense pleasure due to the fineness of the stars. It proves to be a fabulous instrument for the deep sky and the search for comets. The observation of the Lagoon and Trifid Nebula in the same field is extraordinary and striking.




CHARACTERISTICS

Takahashi Epsilon-130D reflector



CHARACTERISTIC

TAKAHASHI EPSILON-130D REFLECTOR

Optical design

Modified hyperbolic Newtonian

Combination

Hyperbolic primary mirror + flat secondary mirror + field flattener

Diameter

130 mm

AT PRIME FOCUS

Focal length

430 mm

Focal ratio

FD 3.3

Image circle diameter

44 mm

Metal Back Distance

56.2 mm




Takahashi Epsilon-130D reflector



CHARACTERISTIC

TAKAHASHI EPSILON-130D REFLECTOR

Length of the optical tube assembly

460 mm

Diameter of the optical tube assembly

166 mm

Weight

4.9 kg






System-Charts



Epsilon 130D System Chart



Included in the box:

Optical Tube Assembly

Visual adapter TKP69005

Coupling (S) TKP00103

Corrector lens TKP69580
