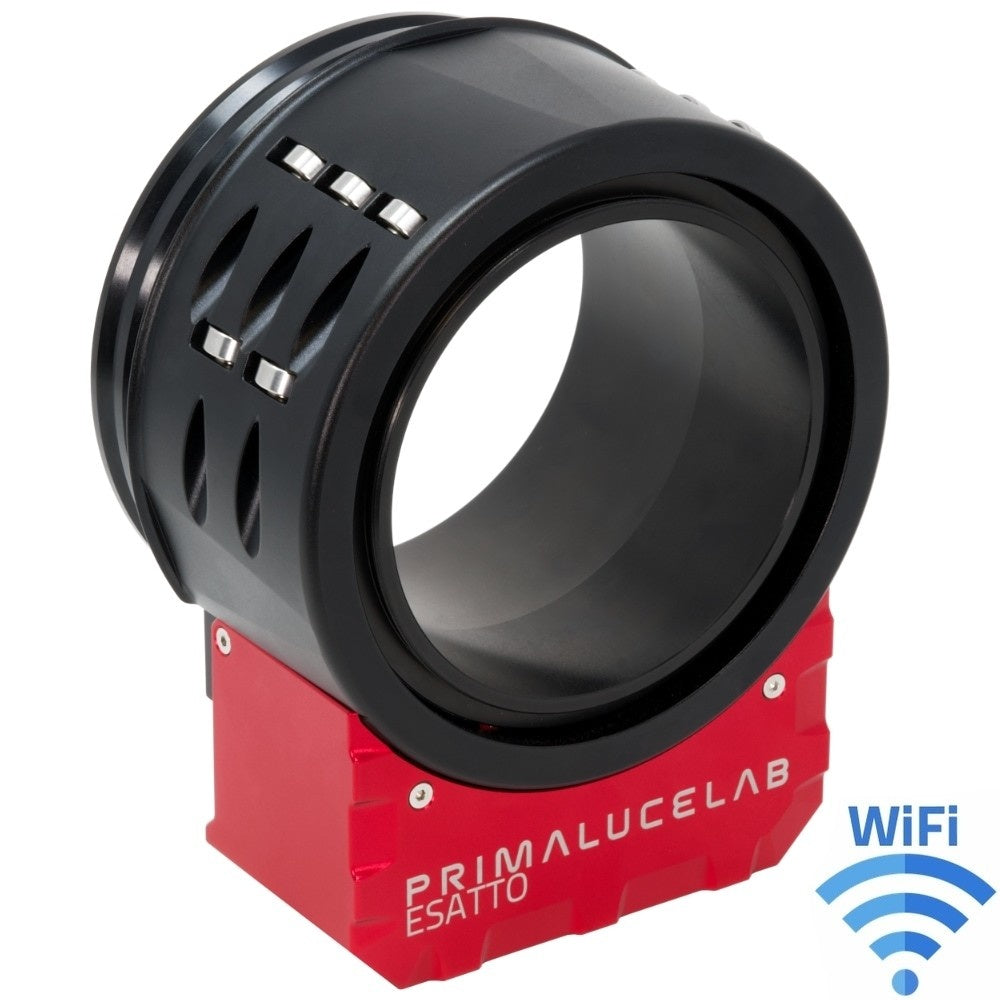

Prima Luce ESATTO 4" robotic microfocuser

Prima Luce Lab SKU: PLLEST4

$1,395.00

Shipping calculated at checkout

In Stock: ships now

ESATTO 4" is our largest robotic micro-focuser that we designed for observatory class telescopes or for astrographs that need for large free aperture.

ESATTO 4" is the largest focuser in the Esatto family.  It's large free-aperture of 102mm, 35mm of focus travel, per-step resolution of 0.04 microns, and 10KG of payload capacity makes it perfect for large professional telescopes like those found in observatories or for astrographs offering large corrected image circles, such as the Takahashi FSQ-106.

ESATTO 4" can be computer controlled via a USB-C port or via WiFi with the included Virtual HandPad.  ESATTO is also rotator ready with a ARCO rotator port that both powers and controls the ARCO Rotator.



Dimensions Comparison: ESATTO 2" (left), ESATTO 3" (center) ESATTO 4" (right).





ESATTO 4” Robotic Micro-Focuser - Features:



- Crayford Style Focuser with 40 ball-bearings, designed for very heavy payload capacities (up to 10 kgs) with no flexure.

 - Low-Profile Design with only 65mm thickness (91mm with internal flange).

- 35mm of Focuser Travel with an incredibly fine resolution of 0.04 microns per step!

- Remotely controllable from EAGLE or any Windows computer, with dedicated control software or ASCOM drivers.

- USB-C connector offering greater reliability that can be connected to any USB type port thanks to the included cable.

- Remote control with WiFi from any smartphone, tablet or computer and ESATTO Virtual HandPad app also for visual use!

- ARCO port easily connects the ARCO Rotator to the Esatto without the need for additional data or power cables.

- Weight: 2050 gr.








ESATTO 4" is the All-In-One design for the best performance for both Commercial and Professional Telescopes





-Incredible resolution of 0.04 microns per step!!!

-45 Bearing Design offers exceptional precision and rigid payload support with zero-flexure

-Control via Eagle or any PC via Reversible USB-C Port.

-ARCO port allows simple integration of our optional high-precision robotic rotator.

-Status LEDs can be dimmed or turned off completely.

-WiFi connection with Virtual HandPad included for use without a computer.











The Perfect Focuser for the Takahashi FSQ-106 Astrograph



Due to it's incredible optical engineering, the Takahashi FSQ-106 is one of the best performing, and most sought after astrographs used by some of the word's best astrophotographers. The special internal corrector is so large that it requires a very large focuser to use it. For this reason ESATTO 4" is the ideal robotic-focuser for the Takahashi FSQ-106 telescope thus allowing remote and high-precision control of even very heavy imaging cameras and accessories (up to 10KG Capacity).







ESATTO 4" installed on the Takahashi FSQ-106 with the optional adapter and PLUS 125mm Losmandy style support rings





Special adapter for Takahashi FSQ-106 and to connect Takahashi photographic adapters



In order to allow you to install ESATTO 4" in place of the original Takahashi focuser, we have designed a special adapter that makes ESATTO 4" have the same thickness of the original focuser. In addition, we have created an adapter to be screwed to the M110x1 thread of the ESATTO 4" draw tube to convert it into an M92x1 female thread which is the same as the one on the original Takahashi focuser. In this way you can remove the original focuser, install ESATTO 4" with the optional adapters and you will find focus point with the same photographic adapters you used before!











ESATTO 4" installed on the Takahashi FSQ-106 with the optional adapter and PLUS 125mm Losmandy style support rings





Dimensions of the ESATTO 4"
