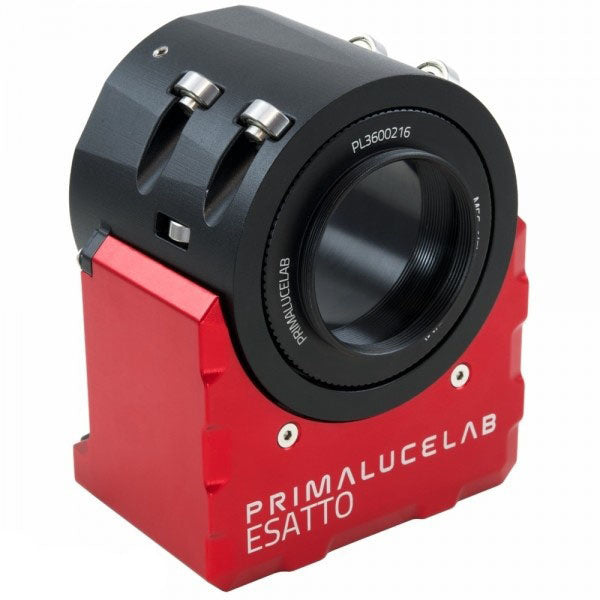

Prima Luce ESATTO 2" robotic microfocuser

Prima Luce Lab SKU: PLLEST2


Shipping calculated at checkout

In Stock: ships now


Wanting to change your stock focuser because it isn’t sturdy enough and lacks precision? Do you want to improve the internal focuser of your SCT telescope? ESATTO is the next generation robotic focuser for telescopes, specifically designed for astrophotography but, thanks to specific technologies developed by PrimaLuceLab, also works extremely well for visual use. Forget about external controllers and cumbersome hand pads - ESATTO is the ALL-IN-ONE focuser that has all the features you’ve dreamed of in a compact, sturdy focuser design.



ESATTO 2 robotic focuser



ESATTO 2” Robotic Focuser

Main Features:


- 18 Ball-Bearing Crayford Style Focuser - specially designed for very high load capacity (up to 5 kgs) with no flexure

- 67mm Thickness Low-Profile Design

- Incredible Step Resolution of 0.04 microns per step with a total of 15mm focuser travel!

- Special adapters to easily connect to many different telescopes.

Remotely Controlled from EAGLE or any Windows computer, it's also provided with ASCOM driver.

USB-C connector offering greater reliability and can be connected to any USB type port thanks to the included cable.

- Remote control with WiFi from any smartphone, tablet or computer and Virtual HandPad app also for visual use!

Many threaded camera adapters available with stop rings on the camera side to rotate and keep the camera in the optical axis.

- ARCO camera rotator and field De-Rotator to the ESATTO without the need for additional USB or 12V power cables.

- Weight: 835 gr.





The Best Focuser Mechanics and Electronics in a Compact Body


The ESATTO robotic focuser was born from our extensive experience in astrophotography and engineered with the uncompromising quality of PrimaLuceLab. We wanted to create the best motorized focuser in the world, with all the latest technical features, resulting in a compact and beautiful design only 67mm of thickness and 50.9mm of free aperture.



ESATTO 2 robotic focuser



Designed to give your telescopes the best performances for astrophotography


The special Crayford design with 18 ball bearings allows ESATTO 2” to have an impressive 5 kgs (11 lb) payload capacity with the focusing smoothness that is required by modern astrophotography techniques (eg. autofocusing with V-curve). ESATTO 2” has a draw tube with 50.9mm of free aperture, and 15mm of travel, offering to an incredible read resolution of 0.04 microns per step!



ESATTO 2 robotic focuser



Many adapters available to connect to many telescopes


You don’t need to worry on how to connect ESATTO to your telescope - You can choose among the many models and adapters available! You can easily connect ESATTO 2” to telescopes like Schmidt-Cassegrains, Aplanatic Schmidt-Cassegrains, refractors, Cassegrains, Newtonians, and more! ESATTO truly is the universal focuser and if you can’t find an adapter for your telescope, just contact us!



ESATTO 2 robotic focuser



Designed for remote control via a USB-C port from the EAGLE or from any Windows computer with a standard USB port


ESATTO has been specifically designed for easy remote operation in order to let your telescope take advantage of all the latest technology in astrophotography. ESATTO comes with a sturdy USB-C port (which you can connect to any USB type port thanks to the cable included in the box) to connect to EAGLE or any Windows computer (tested with Windows 10 computers), and control it with PLAY astrophotography software or ASCOM driver. When connected to a USB ports capable of at least 1A, the ESATTO can be powered and controlled via the one cable!



ESATTO 2 robotic focuser: PLAY astrophotography software



Designed for remote control via WiFi, from any smartphone, tablet or computer via the ESATTO Virtual HandPad app


ESATTO has built-in WiFi remote control capability so you can control it from any smartphone, tablet or computer! Just connect your device to the WiFi network of ESATTO and start the app - You will be able to control the focuser by using the dedicated ESATTO Virtual HandPad app. Thanks to convenient preset settings, you can easily record and move the focuser to specific predetermined positions - Great for visual use! WiFi control works even if ESATTO is also connected to a computer so you can control it simultaneously from 2 devices.



ESATTO 2 robotic focuser



Focuser draw tube with M56x1 thread and stop ring for a perfect camera connection


We know that a perfect focuser is nothing without a solid connection to the camera. That's why, instead of using a normal 2" visual back, ESATTO 2" offers a M56x1 male thread (to let you attach SkyWatcher/Orion reducers for ED 80, 100 and 120 refractors) and, through a complete series of optional camera adapters with stop ring, it allows you to directly connect the most common DSLR, mirrorless and CCD or CMOS cooled cameras directly at the focuser. The stop ring allows you to lock the camera at a precise angle to better frame the object to be photographed. The stop ring adapters are available in many different sizes: this way you can connect, with maximum rigidity and comfort, any camera or accessory.



ESATTO 2 focheggiatore robotico micrometrico



Connect with a single cable to ARCO to remotely control also the camera rotator and field de-rotator


ESATTO includes a special port allowing ARCO, the camera rotator and field de-rotator, to be directly connected. With ARCO, you can remotely control the rotation angle of your camera in order to achieve perfect framing of the object you want to record. If you have an alt-az mount, you can use ARCO to de-rotate the field without the need of an equatorial wedge! ESATTO and ARCO are designed to work together - You will need only one short interconnect between the two!



ESATTO 2 robotic focuser
