Prima Luce 235mm PLUS support rings

Prima Luce Lab SKU: PLLANSU235P


Shipping calculated at checkout

Backordered: Call for Delivery Estimate

The 235mm PLUS support rings can be used with any brands telescopes (such as 200mm diameter Newtons) with 235mm in diameter optical tube.

Compatible with telescopes by various brands, such as: SkyWatcher Newton 200/1000 f5, SkyWatcher Newton Wide Photo 200/800 f4

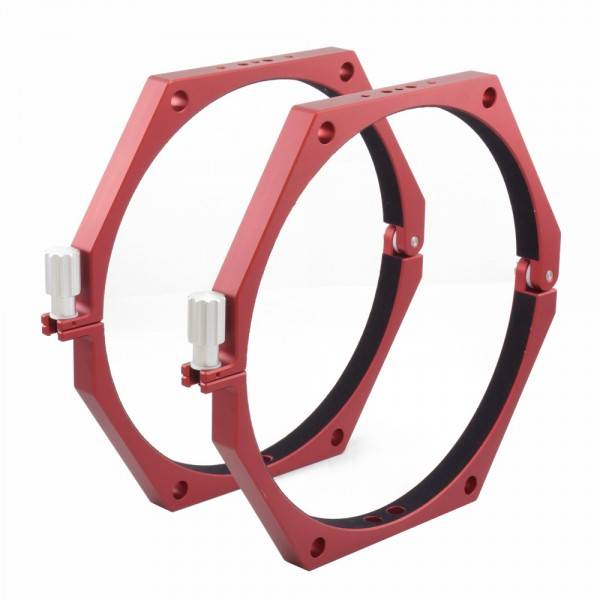

235mm PLUS support rings


235mm PLUS support rings installed on SkyWatcher Newton Wide Photo 200/800 f4 telescope



The 235mm PLUS support rings are part of our system PLUS (Prima Luce Universal System) which includes a large variety of support rings, plates, guide rings and dovetail clamps to offer you the maximum freedom to build your mechanical system of support, depending on the application that you want to achieve. Indeed, all the PLUS elements have threaded holes, holes and slots suitable for connecting elements, always with maximum rigidity and comfort.

Each component of the PLUS system is made of aluminum blocks that are high precision CNC machined. The aluminum is then sandblasted to achieve a a very smooth surface finish and is anodized (hard anodizing) to increase the hardness of the material and protect it from oxidation.

235mm PLUS support rings


Thanks to the particular design, the 235mm PLUS support rings are equipped with holes (above and below each ring) to permit the attachment of:

  1. Vixen or Losmandy plates below the rings to install the telescope on any mount
  2. PLUS guide rings (each ring can be fixed on the support ring with 2 screws)
  3. Vixen or Losmandy plates above the rings to increase the rigidity of the mechanical system and enable to install other accessories, such as dovetail clamps with guide rings to precisely adjust the position of the guide telescope.


If you have other brands mechanical accessories, you can still use all the elements of the PLUS system. A series of central slots allow, for example, to fix on these support rings plate or guide rings through a screw.
