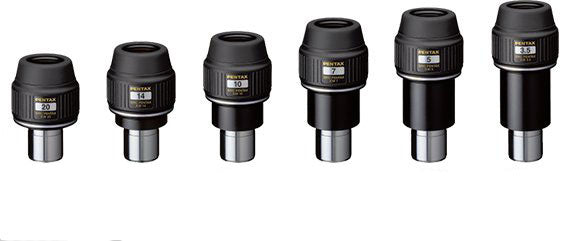

The XW series of eyepieces from Pentax offer a 70° Apparent Angle of View, 20mm Eye Relief, plus Weatherproof Body for Multi-Application Viewing


All smc PENTAX XW-series eyepieces feature an extra-wide 70-degree apparent angle of view and an extra-long 20mm eye relief to deliver an exciting, wide-perspective image.



The high-performance XW-series optics incorporates high-refraction, extra-low-dispersion lanthanum glass elements to produce a well-balanced image with minimal aberrations. It is particularly designed to reduce the disturbing blackout effect by effectively compensating the spherical aberration of the pupil.



All lens surfaces that come in contact with air are treated with the original multi-layer coating, while all laminated surfaces are treated with the innovative partial coating, to offer the light transmission efficiency of more than 90 percent (an astonishing 96 percent at 550nm) over the visible light spectrum.



Thanks to PENTAX’s advanced computer simulation technology, the XW series features a light-shielding diaphragm at the most effective position to drastically reduce internal reflections for a brighter, higher-contrast image.



With four different magnifications (7mm, 10mm, 14mm and 20mm) to choose from, the XW series accommodates a wide range of both casual and specialized applications.



The XW series features JIS Class 4 weatherproof construction,* making it possible to use it in drizzle or under night dew.

* The XW-series eyepieces are not designed for underwater use and should not be submerged under water.



The XW series features the American-standard 31.7mm for smooth, easy installation on the PENTAX spotting scopes. When the rotatable eyecup is removed, it also offers an adapter-mounting screw/thread (43mm in diameter with a 0.75mm pitch).


Model: XW20 XW14 XW10 XW7 XW5 XW3.5
Focal Length: 20mm 14mm 10mm 7mm 5mm 3.5mm
Lens Construction
6/4 7/6 7/6 8/6 8/5 8/5
Apparent Angle of View: 70° 70° 70° 70° 70° 70°
Eye Relief: 20mm 20mm 20mm 20mm 20mm 20mm
Sleeve Size: 31.7mm 31.7mm 31.7mm 31.7mm 31.7mm 31.7mm
Length & Diameter [mm]: 86 x 61 97 x 61 110 x 61 120 x 61 127 x 61 137 x 61
Weight [g]: 355g 365g 390g 390g 395g 405g
