Off-Axis Guide for astronomy photograpy Small size

ZWO SKU: ZWO-OAG

$128.00

Shipping calculated at checkout

Backordered: Call for Delivery Estimate

Product Description

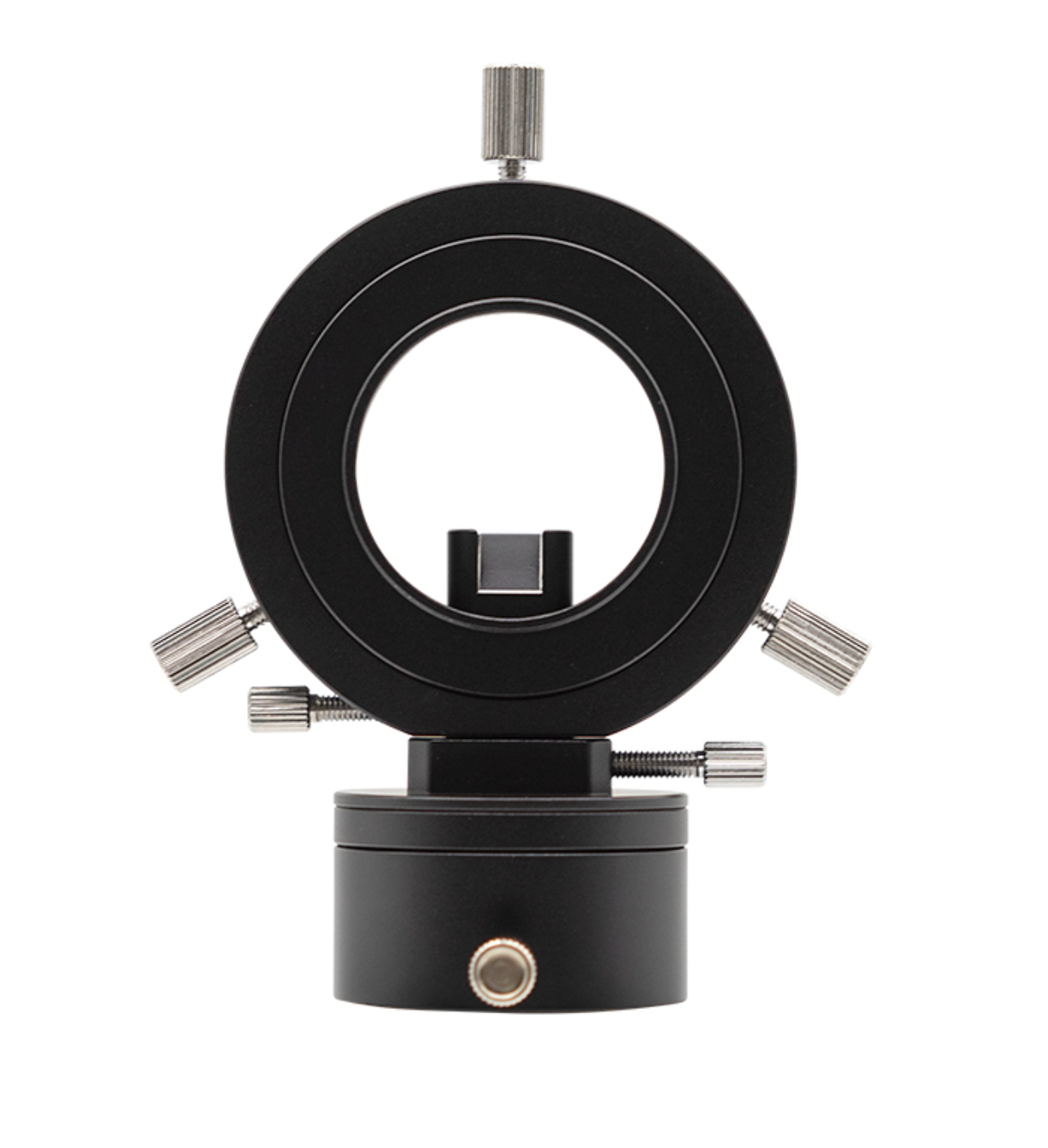

ZWO Off-Axis Guider for Astrophotography



1.Lightweight, 16.5mm thickness

2.Large prism: 8*8mm

3.Connect the main imaging camera and the guide camera. No guide scope required!

4.Flexible adaption to your camera and telescope, such as M42 and M48.

5.Fully compatible with all ZWO ASI cameras

6.Good stability and rigid connection to the telescope to minimize flexing of the imaging train


123OAG连接相机-正视图

ZWO OAG comes with all adapters you will need for imaging and guiding.



Package includes:

EN-OAG及配件

1.       OAG body(with 1.25″ holder and 5mm extender and M42 adapter)

2.       M48 adapter for main imaging camera(in the box)

3.       M48-M42 adapter for telescope and flat lens(in the box)

4.       Hexagon wrench and Spacer(in the box)

Mechanical Diagram

Mechanical Diagram

Connecting Diagram:



Usage Guider:

1.   please caculate the correct required distance for your imaging train at first

for example: you need to attach 21mm extender to ASI071 to reach 55mm back focus distance:17.5mm+21mm+16.5mm=55mm



2. Take off the guider prism part and attach OAG body to the telescope

oagset3_1200x1000

3. Insert the prism part into the OAG body

oagset4_1200x1000

4.  Mount the guide camera

oagset5_1200x1000

5.   Screw the T2 or M48 adaper on the imaging camera according to your mount type.

oagset6_1200x1000

6. Mount the camera on the OAG in correct position and lock the 3 screws in place.

oagset7_1200x1000

7. The final setup

oagset8_1200x1000

Note: please make sure the prism won’t block the imaging area

Use the guiding screw to adjust the guiding camera’s focus.

You’d better do it at day time to make sure imaging camera and guiding camera can reach focus at the same position.

oagset8_1200x1000c
