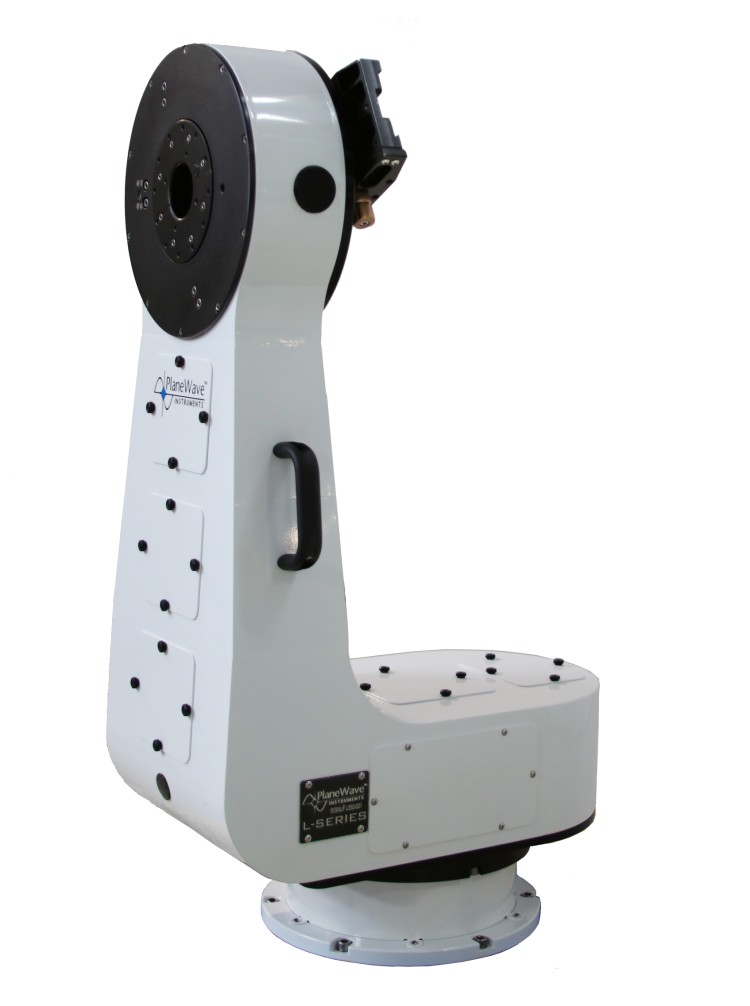

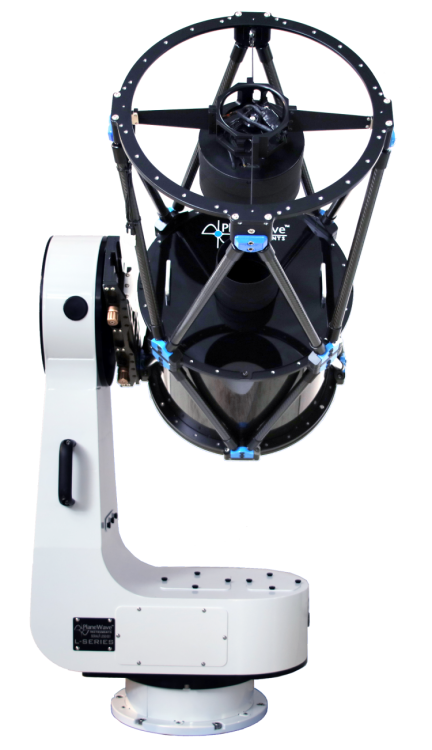

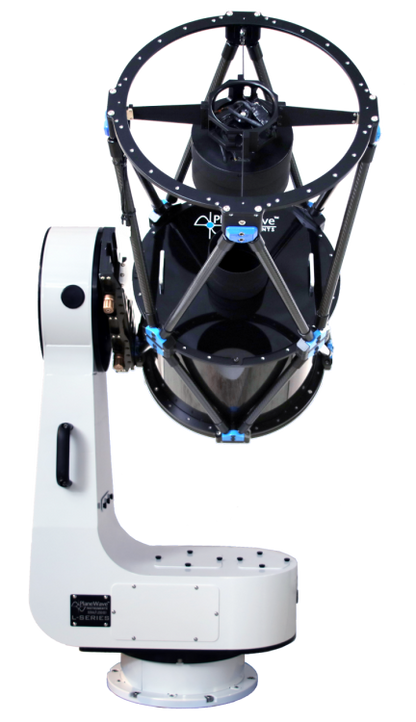

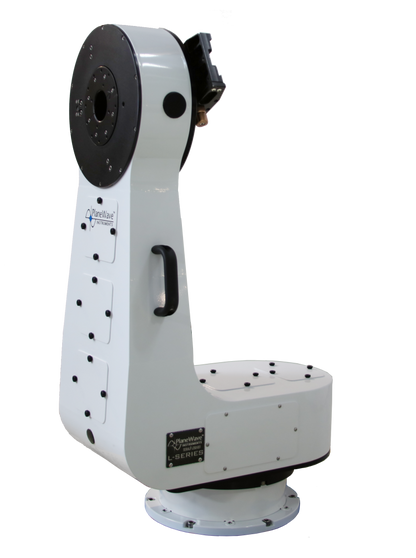

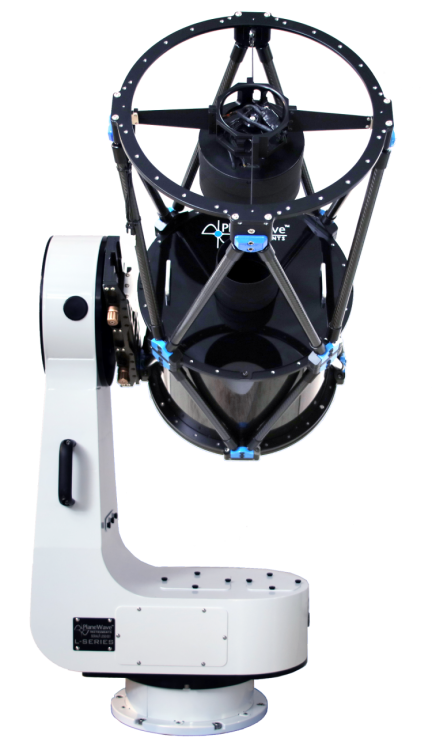

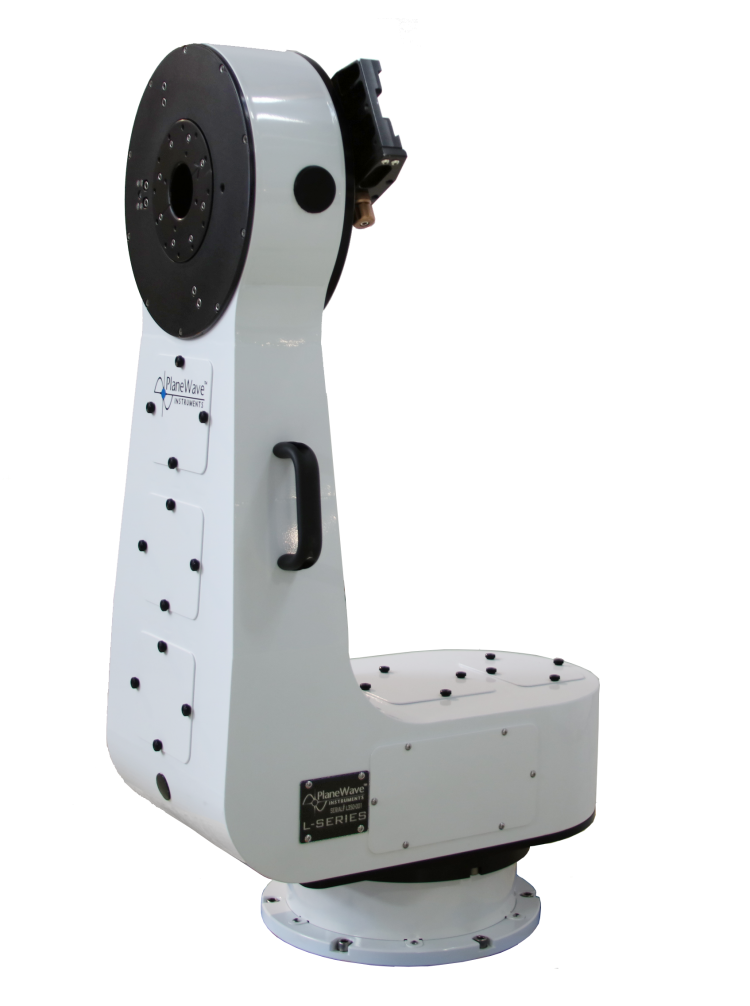

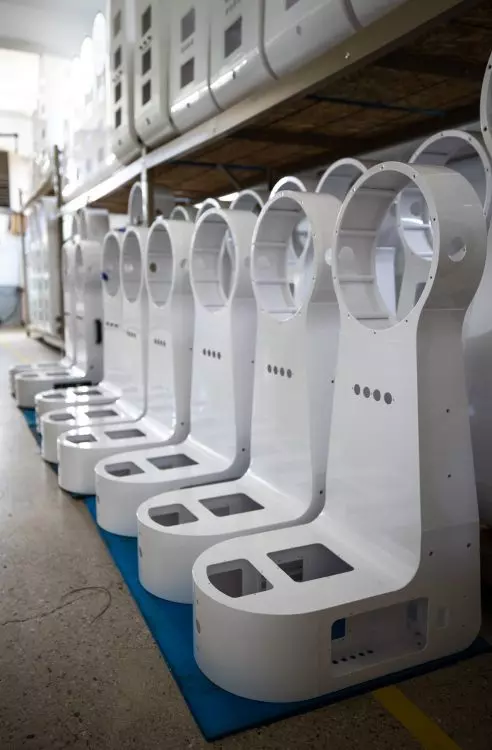

MOUNT, L-SERIES 350 DIRECT DRIVE FOR CDK14

PlaneWave SKU: 600549

$14,000.00

Shipping calculated at checkout

Backordered: Call for Delivery Estimate

The L-Series:

Combines versatility, simplicity and affordability by combining all the technology of our observatory class telescopes into a compact stand-alone mount. In its Alt/Az configuration it is considerably more compact than its equatorial counterpart, allowing a larger telescope to fit in a smaller enclosure. Unlike traditional German Equatorial mounts, there are no meridian flips to deal with, and no large protruding counterweights to create a dangerous hazard in a public observatory. Alt/Az is more intuitive to use and no polar alignment is needed. Besides, it is the way the pros do it! For added flexibility, the L-Series mounts can be installed in either Alt/Az, or equatorial mode with the optional wedge accessory.

L-350 Mount Features:

  • Load capacity of 100 lbs (45 kg)

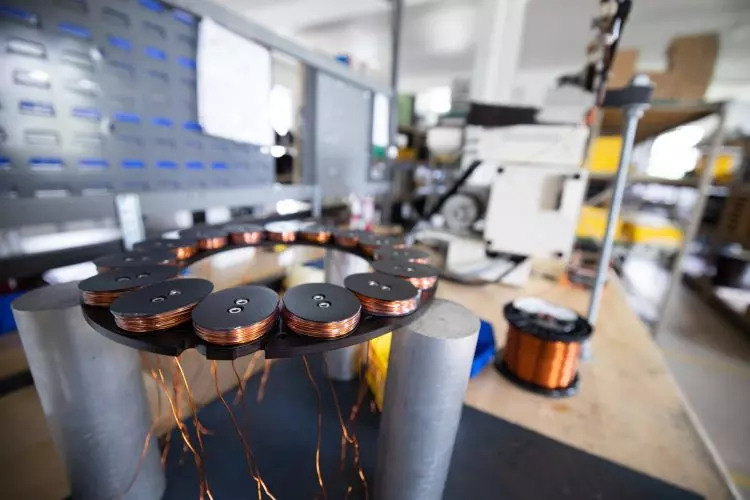

  • Direct-drive motors on each axis for smooth, fast, and virtually silent movement of the telescope
  • Slew speeds up to 50 degrees per second
  • High resolution encoders on each axis for precise positioning
  • Zero backlash
  • Zero periodic error
  • PointXP mount modeling software
  • Enclosed electronics
  • Through the mount cabling





https://www.youtube.com/watch?v=jqtG03BpbLQ&t=50s







Mount System

Type Alt-Azimuth / Equatorial Direct Drive Mount
Weight 110 lbs (50 kg)
Max. Load Capacity 100 lbs (45 kg)
Latitude Range 0 to 90 degrees, Northern and Southern hemispheres
Cable Management Equipment cables can be wired through mount
Swing-Through Length (From Altitude Axis) 22.5″

Control System

Control Electronics PlaneWave Interface dual axis telescope control
User Interface PlaneWave Interface 4 (PWI4) Control Software with integrated PointXP mount modeling software
Homing Sensors Home position sensors are included allowing the mount can find its home position on power up.
Slew Rate 20 degrees per second (standard); 50 degrees per second (maximum), both axes
Power Requirement Accepts 120 to 240 VAC. Supplied with 120 VAC 15A IEC Type B Regulated Power Adapter.

Motion Control

Motor Control Industrial grade brushless motor control system and built in electronics
Motor – Azimuth and Altitude Direct Drive 3 Phase Axial-Flux Torque Motors
Encoder – Azimuth and Altitude 152mm stainless steel encoder ring with reader built into the azimuth and altitude axes. 18,880,000 counts per revolution (0.069 arcsecond resolution).
Motor Torque Approximately 20 ft-lbs continuous; 50 ft-lbs peak
Drive Electronics Industrial grade, off-the-shelf brushless motor drives for each axis with custom designed interface card
Telescope Control Software PlaneWave Interface (PWI4). Incorporates PointXP mount modeling software by Dave Rowe All ASCOM compatible.

System Performance

Pointing Accuracy <10 arcsecond RMS with PointXP Model
Pointing Precision

2 arcseconds at sidereal velocity

Tracking Accuracy

0.3 arcseconds over a 5 minute period at sidereal velocity

System Natural Frequency 10 Hz or greater
