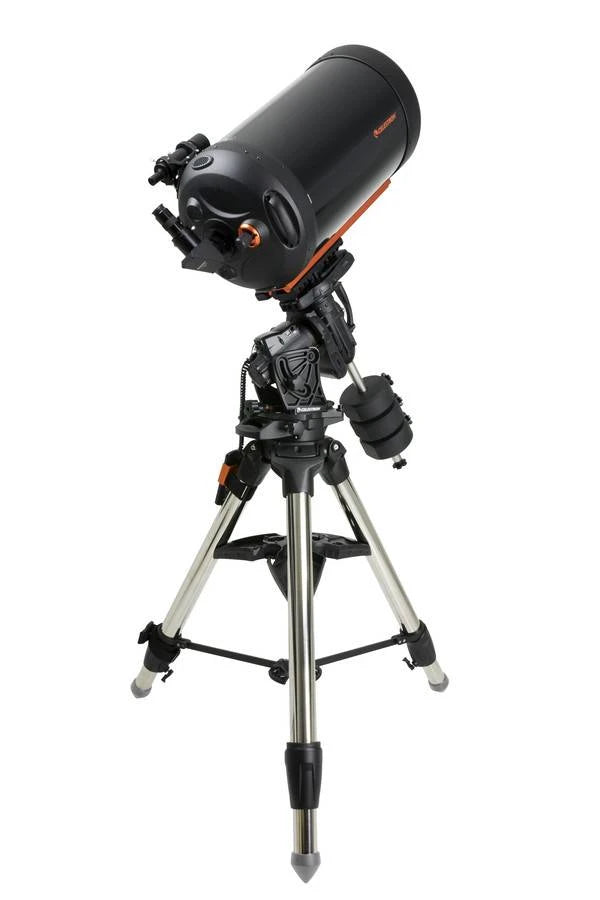

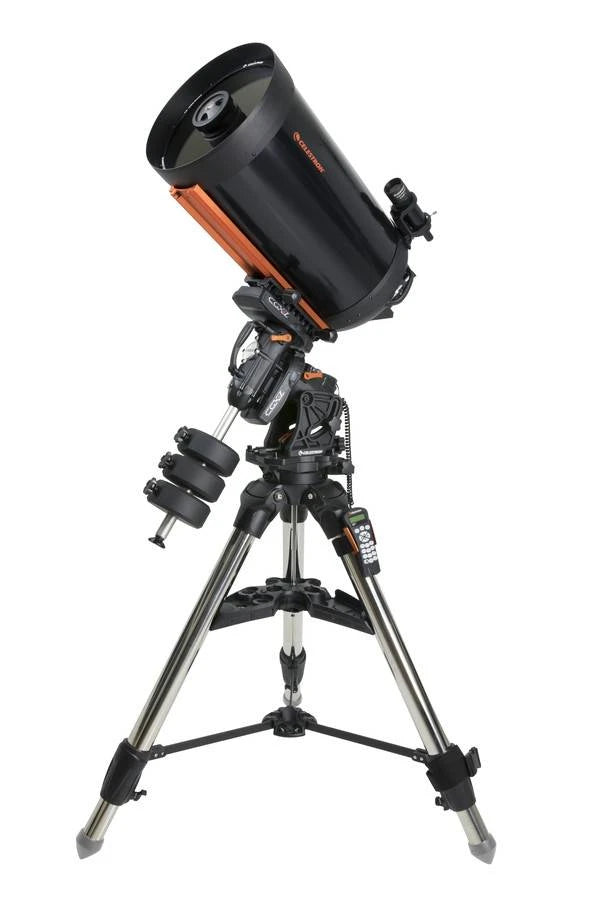

This turn-key solution from Celestron provides a terrific foundation for your home observatory or modern astro-imaging setup.
FEATURES:
- 14" Schmidt-Cassegrain Optical Tube Assembly
- Aluminum Optical Tube
- Celestron's premium StarBright XLT coatings
- Schmidt-Cassegrain mechanism that moves the primary mirror to adjust focus is supported by two pre-loaded ball bearings, minimizing the "mirror flop" typical of bushing focus mechanisms
- 3910 mm focal length (f/11)
- 40 mm eyepiece included (98x)
- 9x50 finderscope to help accurately find objects
- Star diagonal provides more comfortable viewing position when observing objects that are high in the sky
NEW CGX-L COMPUTERIZED MOUNT FEATURES:
Increased 75 lb load capacity. Exceptional load capacity to weight ratio
Additional Aux accessory ports and autoguider port on the Dec axis for better cable management
Larger 144 mm diameter worm wheels to better and more accurately drive heavier loads
Longer 270 mm dovetail saddle to better support larger optical tubes
Massive 70 mm stainless steel tripod legs with a wider stance for improved stability under heavy loads
New accessory tray holds three 1.25” and two 2” eyepieces with an upright stand for your smartphone or tablet
Heavy duty, 31.5 mm stainless steel counterweight shaft to support additional counterweights
Optional add-on polar axis finderscope (# 94239) custom designed for CGX and CGX-L
Compact, lower profile equatorial head provides improved stability and portability. Sturdier and more rigid with quicker dampening time
Improved motors provide more torque, better slewing and tracking under heavy loads
Heavy duty belt-drive system minimizes backlash while providing smooth motor operation at full capacity
Clear windows built into motor covers so pulleys and belts can be monitored
Spring-loaded brass worm wheel and stainless steel worm gear reduce friction and provide optimum gear mesh
Internal cabling for worry-free remote operation. Power input and lower accessory ports remain stationary while the mount slews to avoid snags
Internal hard stops for both axes prevent cable tension and tripod strike
Internal optical sensors on both axes for simple and safe remote operation
-Home sensors allow the mount to always start in the index position regardless of orientation before a power reset
-Limit sensors automatically shut off slewing or tracking before reaching the hard stop fail safe
Includes Celestron's new PWI telescope control software, featuring multi-point mount modeling for extremely precise pointing accuracy
Software Polar Align: “All-Star Polar Alignment” allows quick and very precise polar alignment. Align on any bright named star without extra polar alignment accessories, apps, or other assistance
Adjustable EQ head position to optimize center of gravity over the tripod and fully utilize the increased 3º-65º latitude range
Dual-fit Vixen/CG-5 and Losmandy/CGE dovetail saddle
+20º of additional tracking past the meridian on either side
Redesigned tripod has a widened stance for added stability. The minimum tripod height has also been lowered per user feedback
Tripod legs can be collapsed with accessory tray installed for faster setup and transport
IMPROVED ERGONOMICS:
Integrated handles for easy transport and portability
All-new ergonomically designed dovetail clamping knobs
Innovative and improved polar alignment adjustment system
All-new ergonomic adjustment knobs with reduced friction for smooth and easy positioning under full loads. Stationary latitude knob with a newly-designed linkage system greatly reduces the amount of friction when polar aligning the mount. Redesigned azimuth adjustment with low-friction Teflon bearings to make adjustments easy under full load. No more binding, rough adjustments!
Easy to read latitude scale
ELECTRONICS:
NexStar+ hand control with USB port
USB 2.0 port used to connect directly to PC with PWI Software
2 available autoguider ports for optimum cable management
PEC sensor and PPEC ready
Threaded 12VDC power input barrel connector
Internal Real Time Clock (keeps time and site information saved)
On/Off rocker switch with red LED
