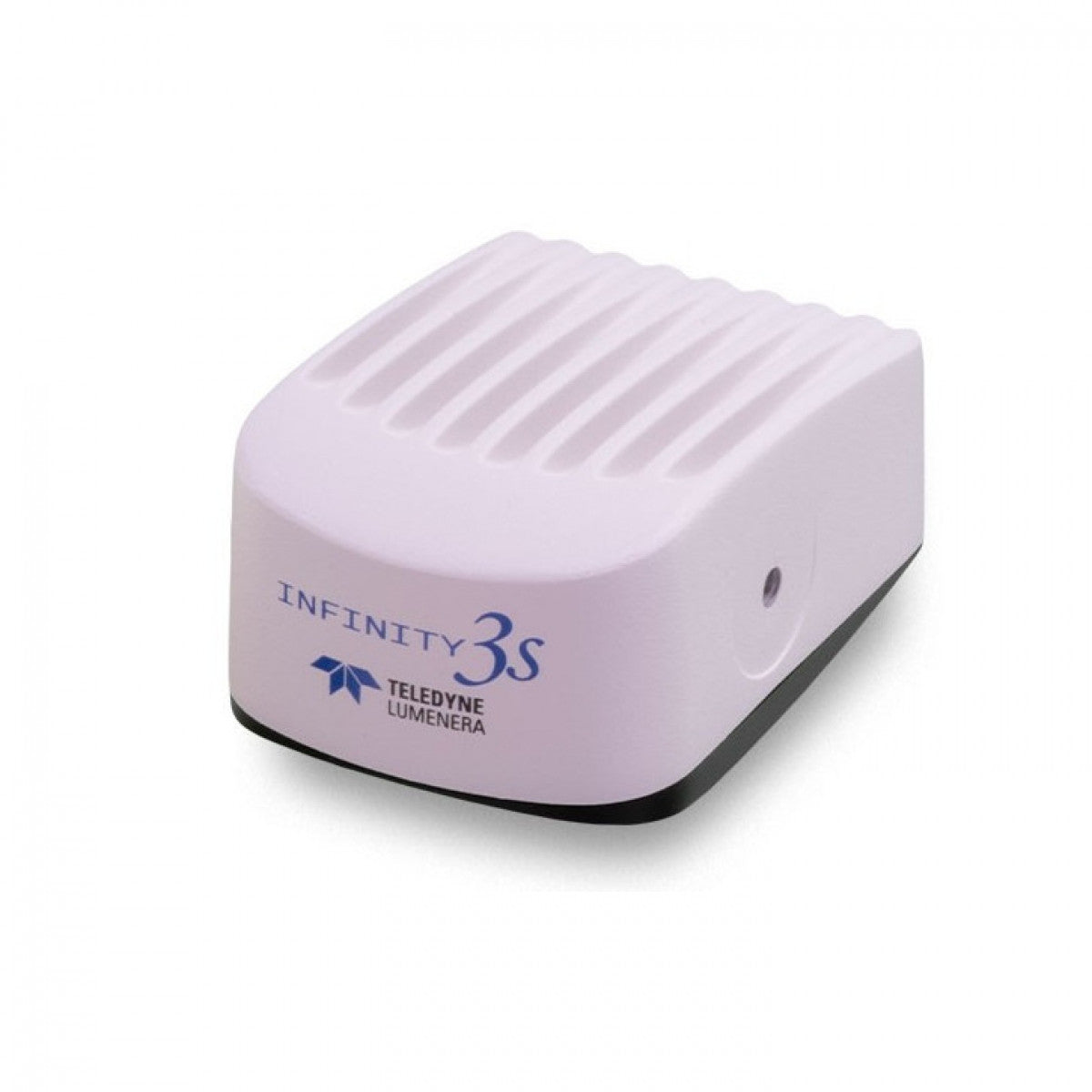

Lumenera’s INFINITY3S-1UR is a high-speed, ultra-sensitive research grade microscopy camera with 1.4 megapixel resolution. The camera incorporates Sony’s new ICX825 CCD sensor, producing much higher dynamic range and sensitivity over the popular ICX285 sensor. The INFINITY3S-1UR has the unmatched light sensitivity needed for challenging low light applications such as fluorescence and NIR imaging. Lumenera's high-speed USB 3.0 data interface provides maximum allowable throughput where full resolution images can be sent to a host computer at an industry leading 60 fps when using the monochrome camera model.
Every INFINITY AU camera includes INFINITY ANALYZE software for advanced camera control, image processing, measuring and annotation, and is supported by an experienced team of technical support and imaging experts.
We understand your imaging needs and are here to help you get the most out of your camera.
| Camera Sensor | |
|---|---|
| Image Sensor | 2/3″ CCD, Sony ICX825, Monochrome |
| Effective Pixels | 1392×1040, 1.4 million pixels, 6.45μm square pixels |
| Frame Rate | 60 fps at 1392 x 1040, increased with binning and ROI |
| Dynamic Range | ~ 70 dB (color) |
| Digital Output | 8 and 14-bit |
| Read Noise | ~5.8 e- (in dual-tap mode, slowest clock) |
| Dark Current | <1 e-/s (at 22°C ambient, 41°C internal) |
| Camera Controls | |
| Mass | 375g |
| Power Requirement | External 5VDC – 1.2A, power supply (included) |
| Power Consumption | ~5Watts |
| Operating Temperature | 0° C to 50° C |
| Operating Humidity | 5%-95%, Non-condensing |
| Integration Time | 3 µs to 71 min (snapshot); 23 µs to 1.3 s (video) |
| ROI | Any multiple of 16x16 (quad tap mode) |
| Exposure Mode | Automatic / Manual |
| White Balance | Automatic / Manual |
| Gain | 0.6 to 44x; Manual and Automatic |
| Interface Connector | USB 3.0 (USB 2.0 supported at lower frame rates) |
| Dimensions (L x W x H) | 3.85 x 2.75 x 2.00 inches |
| Lens Mount | C-Mount lens adapter |
| Binning Options | 2 x 2, 4 x 4, 8 x 8 |
Recommended PC Specs:
- Pentium 4, 1.3 GHz or higher
- 512MB RAM
- 60 MB hard drive free space or more
- USB 2.0 Port
- Windows 2000, XP, Vista, or 7
Product Includes:
- AU-141SURM-CCD INFINITY digital camera for USB 3.0
- CD-ROM with INFINITY user application software
- TWAIN driver
- Documentation
- USB 3.0 cable
