Pegasus Astro Falcon Rotator



Shipping calculated at checkout

Backordered: Call for Delivery Estimate

Falcon Rotator is a lightweight, low-profile camera field rotator. Do not be fooled by its thin size! It can lift and handle heavy image trains – dead accurate!

Very easy to operate via ASCOM drivers or Unity Platform software, will make your life easier to automatically orient, with precision, your camera field.

Pegasus Astro – Falcon Rotator

Precise rotation

A powerful geared / low backlash, quiet stepper motor ensures that the rotator will precisely lock to the designated degrees. Mechanics inside the focuser guarantee zero flex at any point during a full circle rotation.

Low profile

Thickness of the rotator is 18mm / 0.7”
When you use the M54 to M48 adapter the backfocus is +1mm (18+1 = 19mm)
Weight is 700grams. Both openings of the rotator are M54 threaded (pitch 0.75mm)

Rated load

Falcon Rotator has been tested at 6Kg / 13.2lbs of imaging setup.
The sophisticated mechanical design that uses 6 stainless steel bearings can easily handle high payloads with zero flexure.

Cable Wrap Prevention

Rotator does not allow a clockwise turn above 220 degrees. It will turn anti-clickwise when it has to be moved above 220 degrees.

A nice cable wrap/snag prevention feature out of the box.

Adapters for both sides (included)

Falcon Rotator backfocus

We provide (in the box) two different adapters for both sides:

  • Telescope Side: M54 male to 2” Nosepiece (1.5mm thickness)
  • Camera Side: M54 Male to M48 Male Adapter (2.0mm thickness)
    For optional adapters click here

The M54 adapter black ring on the camera side of the Falcon Rotator sticks out by almost 1mm (so actual back-focus is 18+1 =19mm)

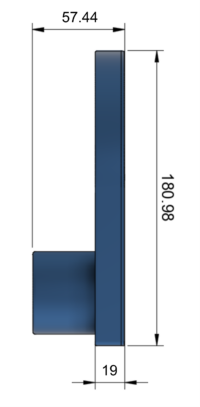

Backfocus drawing can be found on the left (click for enlarge):

De-Rotation support for Alt/Az mounts

Falcon Rotator Software - De-Rotation

Rotator has the mechanical precision to achieve field de-rotation. Supplied software calculates Rate of Rotation (RoR) based on the site latitude, target altitude and azimuth position.

Examples of images taken with Falcon Rotator & Derotation on a Dobsonian Telescope


Testing Falcon Rotator from Pegasus Astro

Falcon Rotator / An In-Depth Review

You can watch this detailed review from one of our customers

Why camera ROTATORS are AWESOME for astrophotography! – Featuring Pegasus Astro Falcon Rotator

You can watch this detailed review from one of our customers

Supported By

ASCOM 6 Fully supported

Rotator fully supports latest ASCOM 6.5.

INDI Fully supported

INDI is also supported via latest (currently nightly build) of INDI

Standalone Software

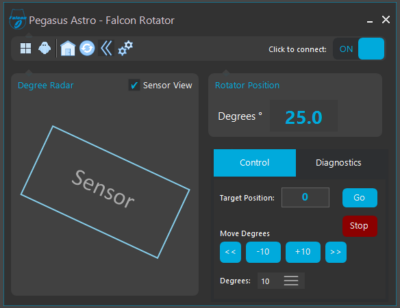

Falcon Rotator Software 1
Control the Falcon Rotator from the supplied standalone Windows software.

Unity Platform Support

Pegasus Astro Unity Platform is our new all around application. Our goal is to provide a robust and modern application that is going to support current and future products under one roof.

A modern frontend allows the full control of all Pegasus Astro devices.
Moreover, a REST JSON api helps developers from 3rd party software to interact with our products.
As we continuously develop our applications, based on customer feedback, lots of innovative features are going to be added in upcoming releases.

In the Box

1 x Falcon Rotator

1 x M54 male to 2” Nosepiece

1 x M54 Male to M48 Male Adapter

1 x USB2 Cable
Type B (1.8m)

Dimensions (in mm)

Optional adapters available

Technical Specification

Physical Size 180mm x 140mm x 56mm
Material Blue Anodised Aluminium
Clear Aperture 54mm / 2.13”
Steps per degree 86.6 steps per degree (31.192 steps per full revolution)
(full step drive – can be increased with microstepping)
Payload 6Kg / 13.2lbs
Telescope Adapter M54 male to 2” Nosepiece (included) (0.75mm pitch)
Camera Adapter M54 Male to M48 Male Adapter (included) (0.75mm pitch)
Back Focus 18mm / 0.7” (+1mm if you place M54 adapter)
Weight 0.7Kg / 1.54 lbs)
Connectivity USB 2.0
Operating Power 12V / 1Amp

An ED65 refractor example with the FocusCube v2, Falcon Rotator and Scops OAG
