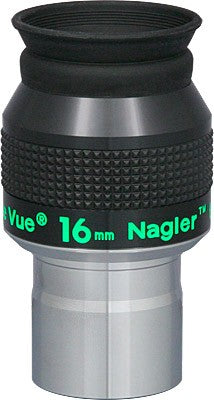

Tele Vue's 16mm Nagler Type 5 is a scaled down version of the "king of the field," 31mm. The Type-5 16mm is a smaller, lighter (0.45 lbs.), 1¼" only, 6-element design which replaces the 8-element 16mm Nagler Type 2. This exciting little high contrast eyepiece looks like a 19mm Panoptic, but packs the visual impact and sharpness we all expect from the 82° Nagler series. This eyepiece offers owners of 1¼" only scopes the largest possible true field in an 82° apparent field eyepiece. Great for small scopes and Bino Vues.
Model # | EN5-16.0 |
Focal Length (mm) | 16 |
Barrel Size (in.) | 1¼" |
Apparent Field of View (deg.) | 82 |
Eye Relief (mm) | 10 |
Weight (lb / oz) | 0.44 / 7.1 |
Field Stop (mm) | 22.1 |
